Cone 6 white matte and glossy that do not crawl

Share from Insight-live.com (Lab Documentation and Calculation System) by Digitalfire. https://backup.digitalfire.com

See Also:
The Development of G2926B Cone 6 Transparent Clear Glaze
Ravenscrag Slip cone 6 base pottery glaze - Adjustable using two frits

Using Tin Oxide and Zircopax together produces a better white and has much less tendency to crawl.

G2934 White Tin/Zircopax

Code #

G3926C

P Materials Amt
G2926B 15.000
G2934 85.000
P Additions
* Tin Oxide 3.000
* Zircopax 5.000

Total:108.00

Auto Unity Formula

CaO 0.54
MgO 0.36
K2O 0.01
Na2O 0.09
(KNaO) 0.10
B2O3 0.09
Al2O3 0.47
SiO2 3.03

Ratios

Si:Al: 6.5:1
SiB:Al: 6.7:1
R2O:RO: 0.1:0.9

Expansion

5.9 (Molar:5.8)

LOI

12.4

Cost

9.49 per kg

Notes

*This is the standard G2934 matte and G2926B glossy blend (which produces a satin matte). We have added Zircopax and tin oxide added to opacify it to produce a white.

The mix is being used because pure Zircopax tends to cause crawling.

Pictures

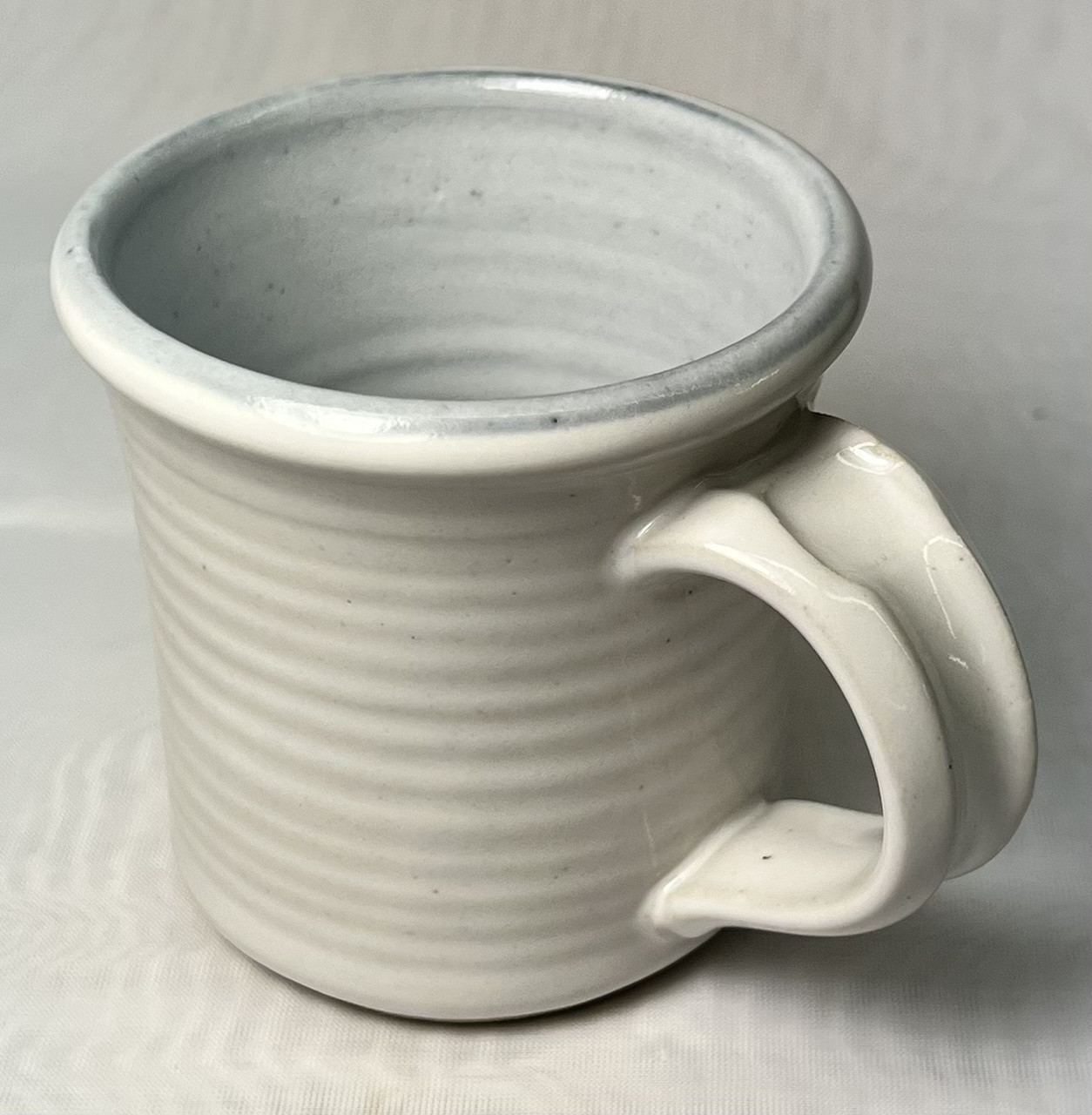

L4471J2 M341S glazed white

L4471J2 M341S glazed white

XML (to paste into Insight)

<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G2934 White Tin/Zircopax" id="221944" key="5pHXfp7K" date="2022-11-17" codenum="G3926C"> <recipelines> <recipeline material="G2926B" amount="15.000" tolerance=""/> <recipeline material="G2934" amount="85.000" tolerance=""/> <recipeline material="Tin Oxide" amount="3.000" added="true"/> <recipeline material="Zircopax" amount="5.000" added="true"/> </recipelines> </recipe> </recipes>

Born: 2022-07-20, Modified: 2022-11-17 17:20:44

G2926B with Tin/Zircopax

Code #

G3926B

P Materials Amt
G2926B 100.000
P Additions
* Tin Oxide 3.000
* Zircopax 5.000

Total:108.00

Auto Unity Formula

CaO 0.48
MgO 0.10
K2O 0.05
Na2O 0.37
(KNaO) 0.42
B2O3 0.44
Al2O3 0.62
SiO2 6.17

Ratios

Si:Al: 9.9:1
SiB:Al: 10.6:1
R2O:RO: 0.4:0.6

Expansion

6.2 (Molar:6.1)

LOI

3.0

Cost

9.06 per kg

Notes

*This is the standard G2926B transparent glaze recipe with Zircopax and tin oxide added to opacify it.

The mix is being used because pure Zircopax tends to cause crawling.

For dipping we use the same method as for the G2926B base.

For a 500ml jar of brushing glaze we blender mix 340 powder, 440 water, 5 CMC gum and 5 Veegum.

Pictures

L4471J2 M341S glazed white

L4471J2 M341S glazed white

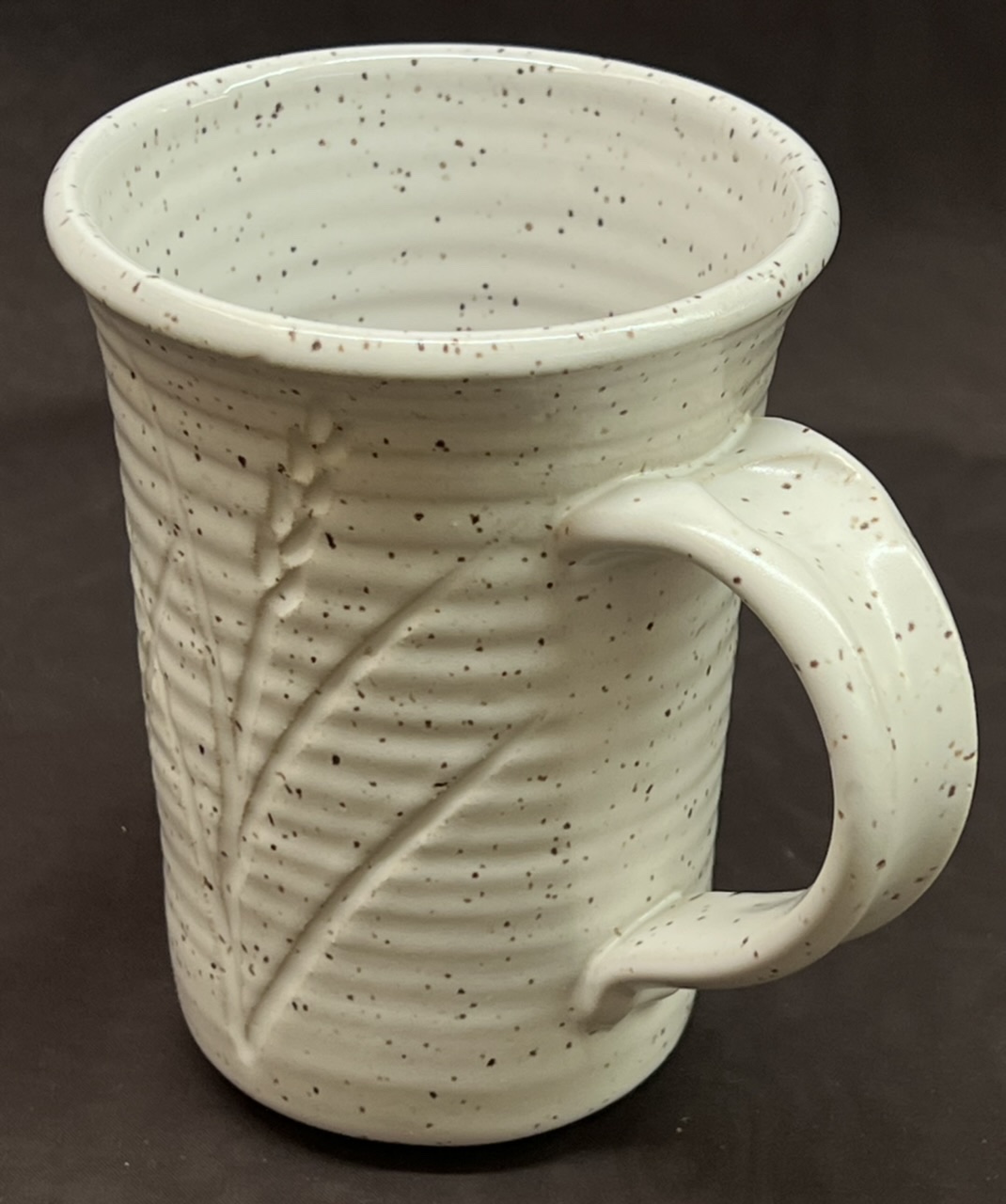

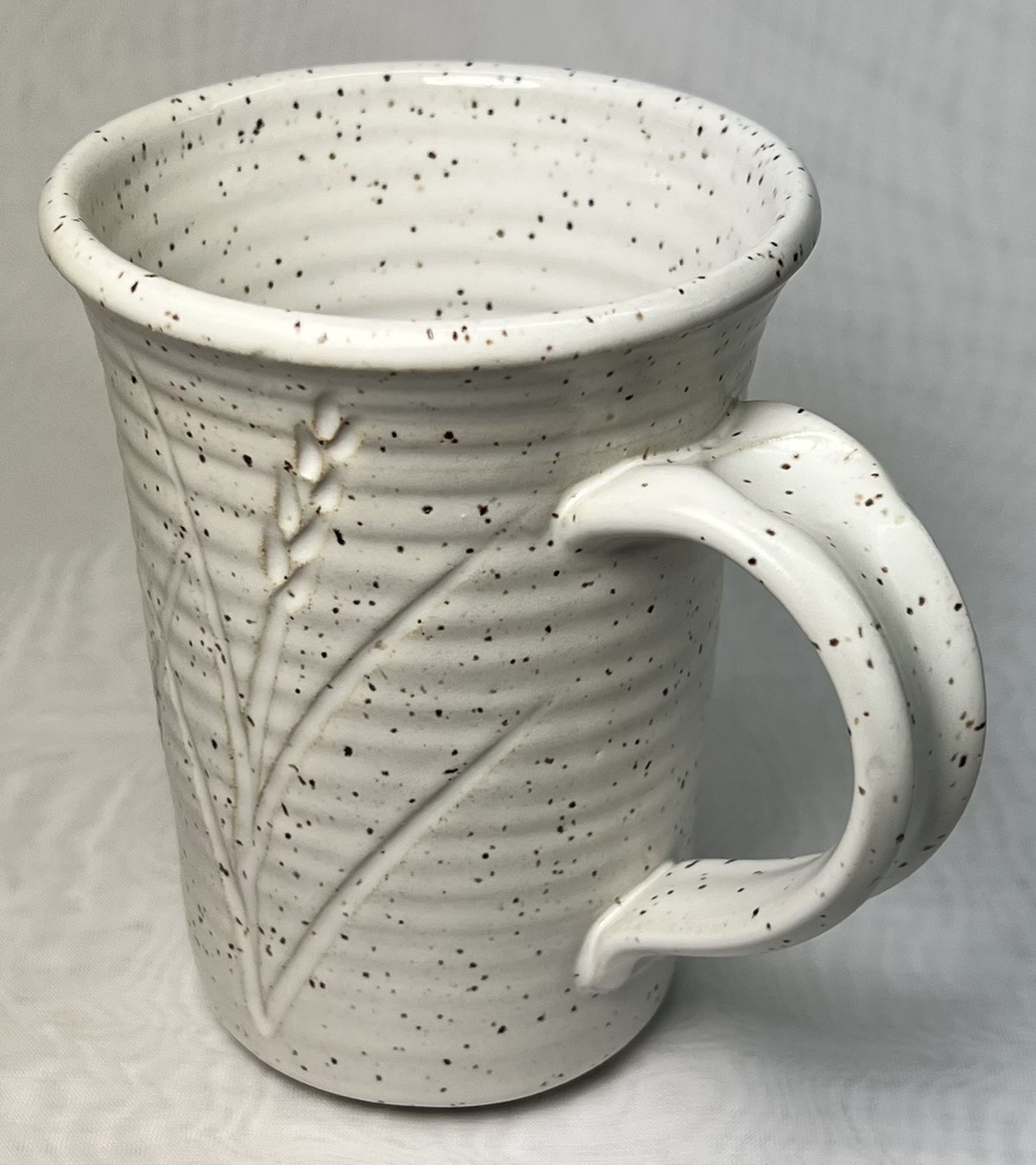

G3926B vs G2926A on M341S

The B is not crawling and it whiter.

G3926B on M340 and TerraCotta underglaze

XML (to paste into Insight)

<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G2926B with Tin/Zircopax" id="221877" key="MpKLAkXB" date="2022-12-25" codenum="G3926B"> <recipelines> <recipeline material="G2926B" amount="100.000" tolerance=""/> <recipeline material="Tin Oxide" amount="3.000" added="true"/> <recipeline material="Zircopax" amount="5.000" added="true"/> </recipelines> </recipe> </recipes>

Born: 2022-07-20, Modified: 2022-12-25 22:37:01
