Cone 10R Tenmoku Glossy
|
Code # G2576B |
| Materials | Amt |
|---|---|
| Custer Feldspar | 27.000 |
| EPK Kaolin | 20.500 |
| Flint | 26.500 |
| Wollastonite | 23.500 |
| Zinc Oxide | 2.500 |
| Additions | |
|---|---|
| Iron Oxide Red | 11.000 |
Total:111.00
Auto Unity Formula
|
Si:Al: 9.0:1 7.2 (Molar:6.7) 4.5 Cost 0.16 per kg |
Notes
*This uses the G1947U base transparent recipe and adds 10% iron oxide. We used this for many years. However, the 10% iron makes this very messy to work. The iron also gels the slurry making it difficult to apply evenly and causing problems with cracking during drying.
Pictures
Typecodes
ST-Untitled typecode
Alternate Code Number:GS10-I
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Cone 10R Tenmoku Glossy" id="63988" key="qg4bb1ss" date="2022-02-26" typecodes="ST" codenum="G2576B" picturebasename=""> <recipelines> <recipeline material="Custer Feldspar" amount="27.000" tolerance=""/> <recipeline material="EPK Kaolin" amount="20.500" tolerance=""/> <recipeline material="Flint" amount="26.500" tolerance=""/> <recipeline material="Wollastonite" amount="23.500" tolerance=""/> <recipeline material="Zinc Oxide" amount="2.500" tolerance=""/> <recipeline material="Iron Oxide Red" amount="11.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 1995-04-21, Modified: 2022-02-26 19:56:38
Alberta Slip Tenmoku #1
|
Code # G2880 |
| Materials | Amt | |
|---|---|---|
| Alberta Slip | 100.000 | 95.24% |
| Whiting | 5.000 | 4.76% |
| Additions | ||
|---|---|---|
| *Iron Oxide Red #120 | 1.000 | 0.95% |
Total:106.00
Auto Unity Formula
|
Si:Al: 6.0:1 7.4 (Molar:6.9) 10.9 Cost 0.05 per kg |
Notes
*Alberta Slip is almost a tenmoku by itself. This small addition of calcium carbonate and iron produce a little more melt fluidity and better crystallization of the iron. Of course, like any tenmoku, thickness must be controlled: Enough to get the visual effect but not so much that it runs.
Alberta Slip, as a base for a tenmoku, it a very good choice because so little added iron is needed.
Pictures
G2880 Alberta Slip Tenmoku Cone 10R glaze cone

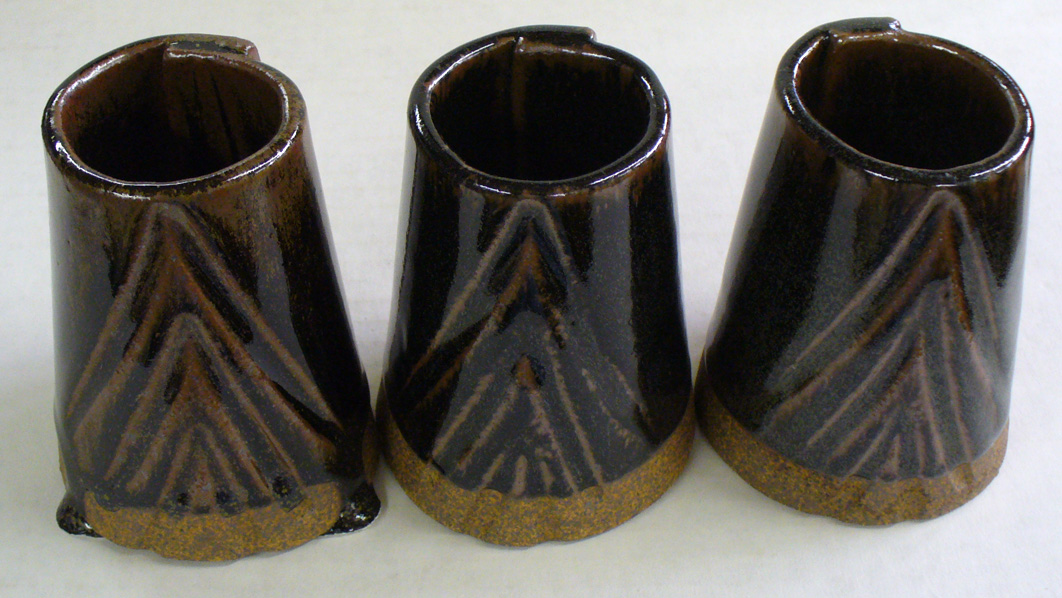

G2880 Alberta Slip Tenmoku Cone 10R glaze cones

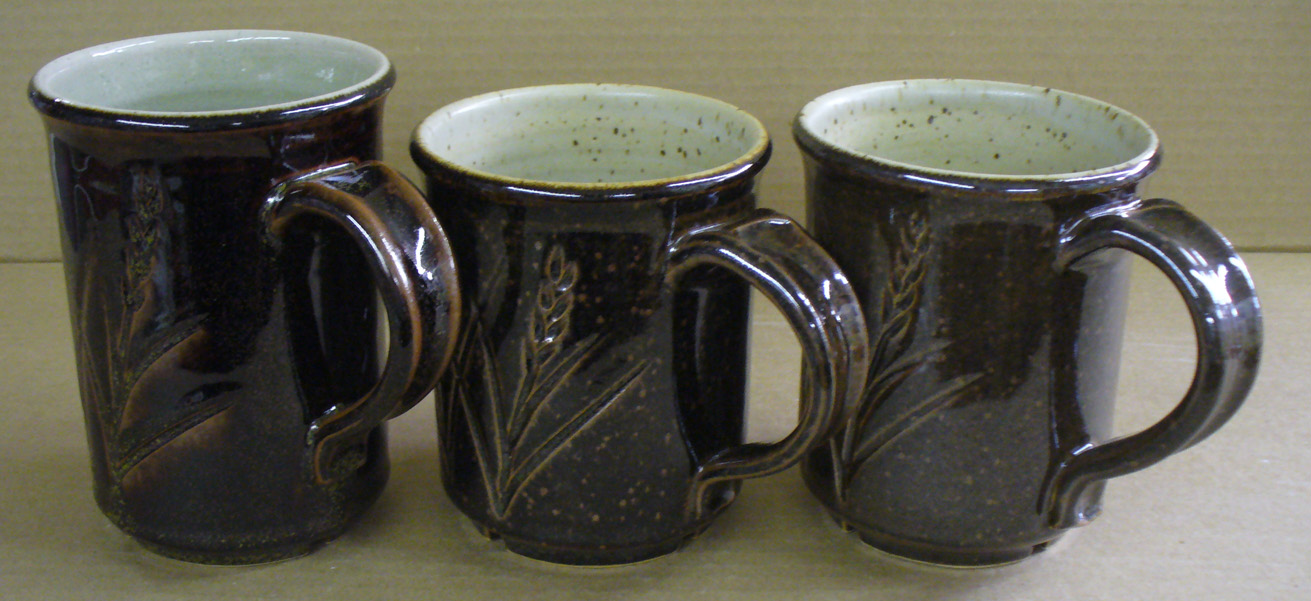

G2880 Alberta Slip Tenmoku Cone 10R mugs
This compares the tenmoku with 1% iron (right) with our standard tenmoku recipe.
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Alberta Slip Tenmoku #1" id="70798" key="DcYy4Zod" date="2022-02-26" codenum="G2880" picturebasename=""> <recipelines> <recipeline material="Alberta Slip" amount="100.000" tolerance=""/> <recipeline material="Whiting" amount="5.000" tolerance=""/> <recipeline material="Iron Oxide Red #120" amount="1.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2008-12-03, Modified: 2022-02-26 19:55:22
Alberta Slip Tenmoku #2
|
Code # G2880A |
| Materials | Amt | |
|---|---|---|
| Alberta Slip | 100.000 | 95.24% |
| Whiting | 5.000 | 4.76% |
| Additions | ||
|---|---|---|
| *Iron Oxide Red #120 | 2.000 | 1.90% |
Total:107.00
Auto Unity Formula
|
Si:Al: 6.0:1 7.4 (Molar:6.9) 10.9 Cost 0.05 per kg |
Notes
*Same recipe but with a little more iron oxide. Perfecting the amount of iron is just a matter of continuous use and experimentation in your circumstances.
We found that this can crystallize more heavily when applied more thinly on porcelains.
Pictures

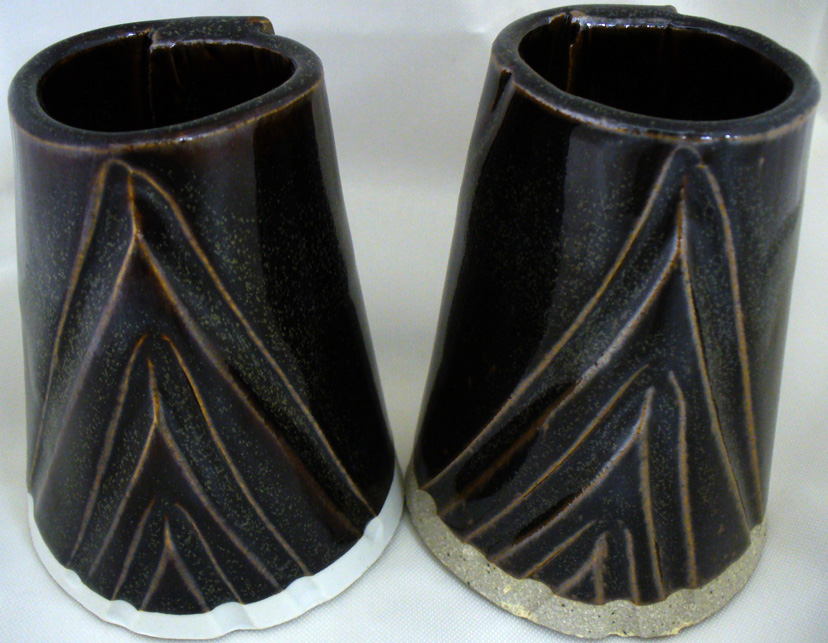

G2880A Tenmoku on porcelain, buff stoneware

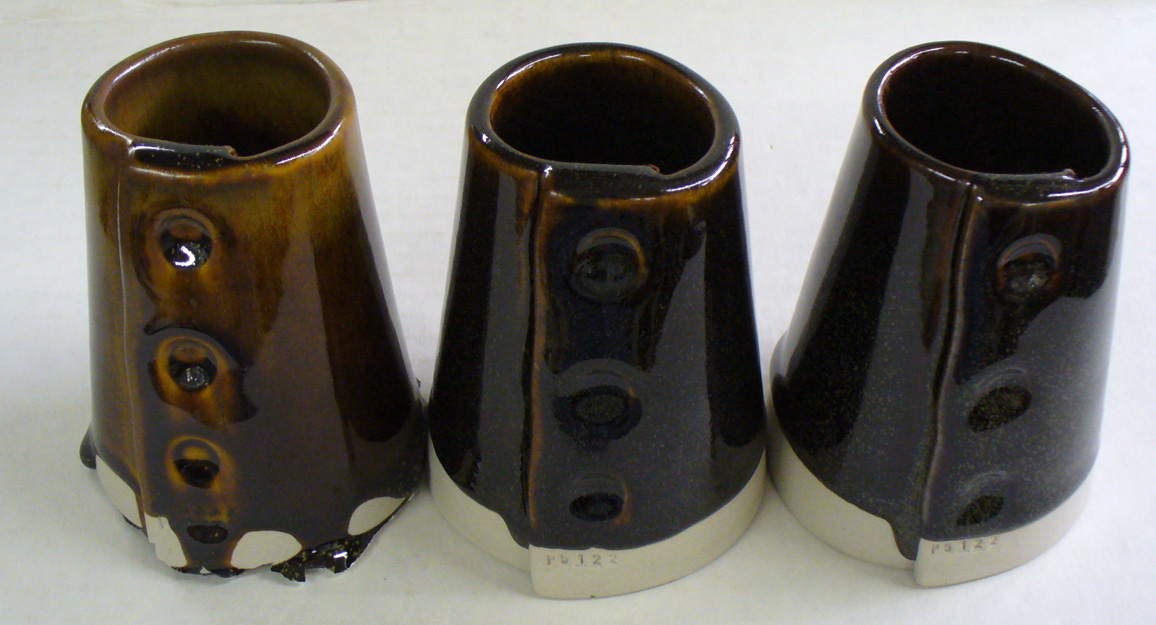

G2894A on left, G2880A center, GA10
G2894A on left, G2880A center, GA10-A pure Alberta Slip right.

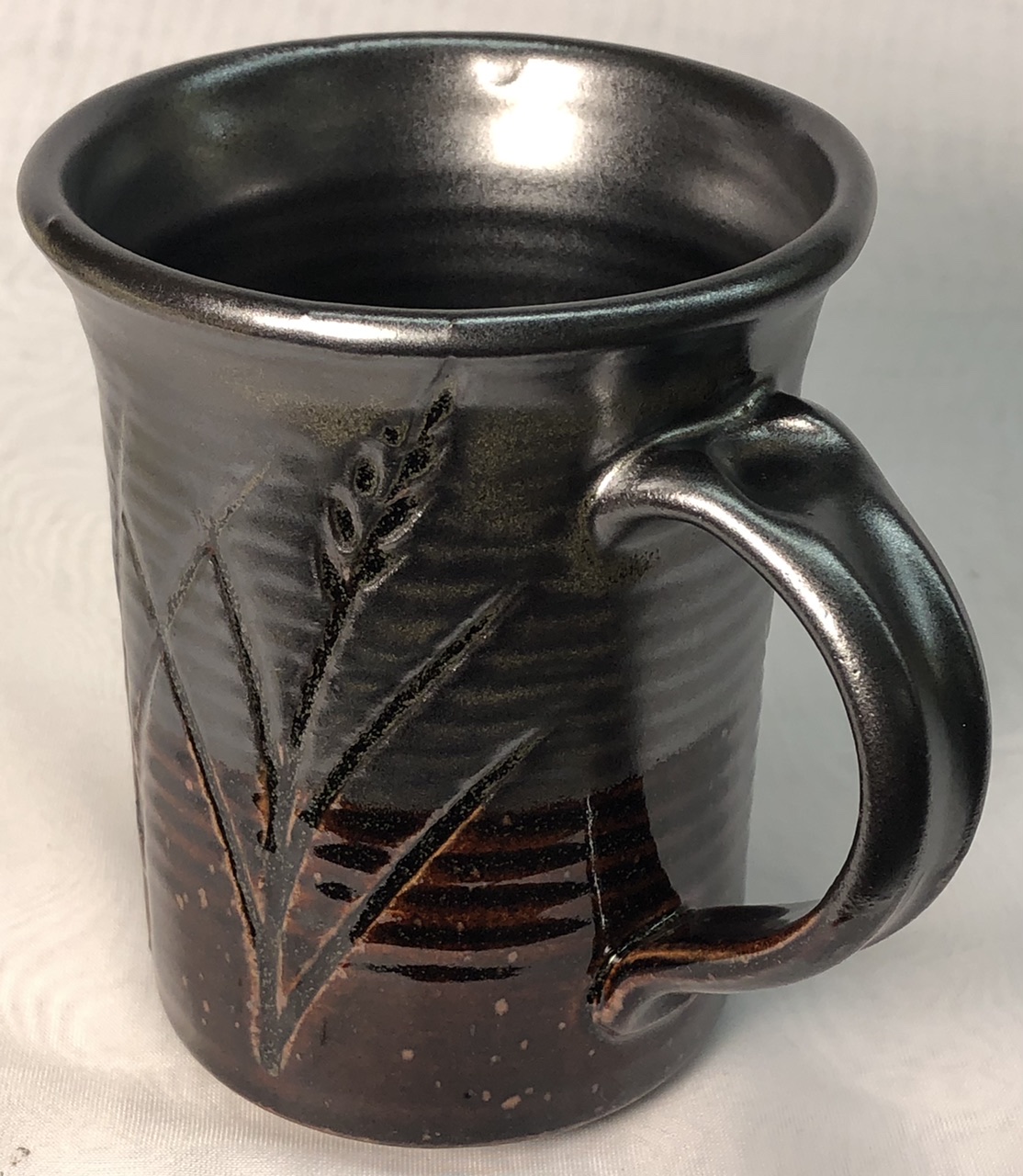

G2880A Tenmoku over L3954N black engobe
Pooled and bubbled on the inside bottom because of very heavy reduction, but outside results of tenmoku are very good.

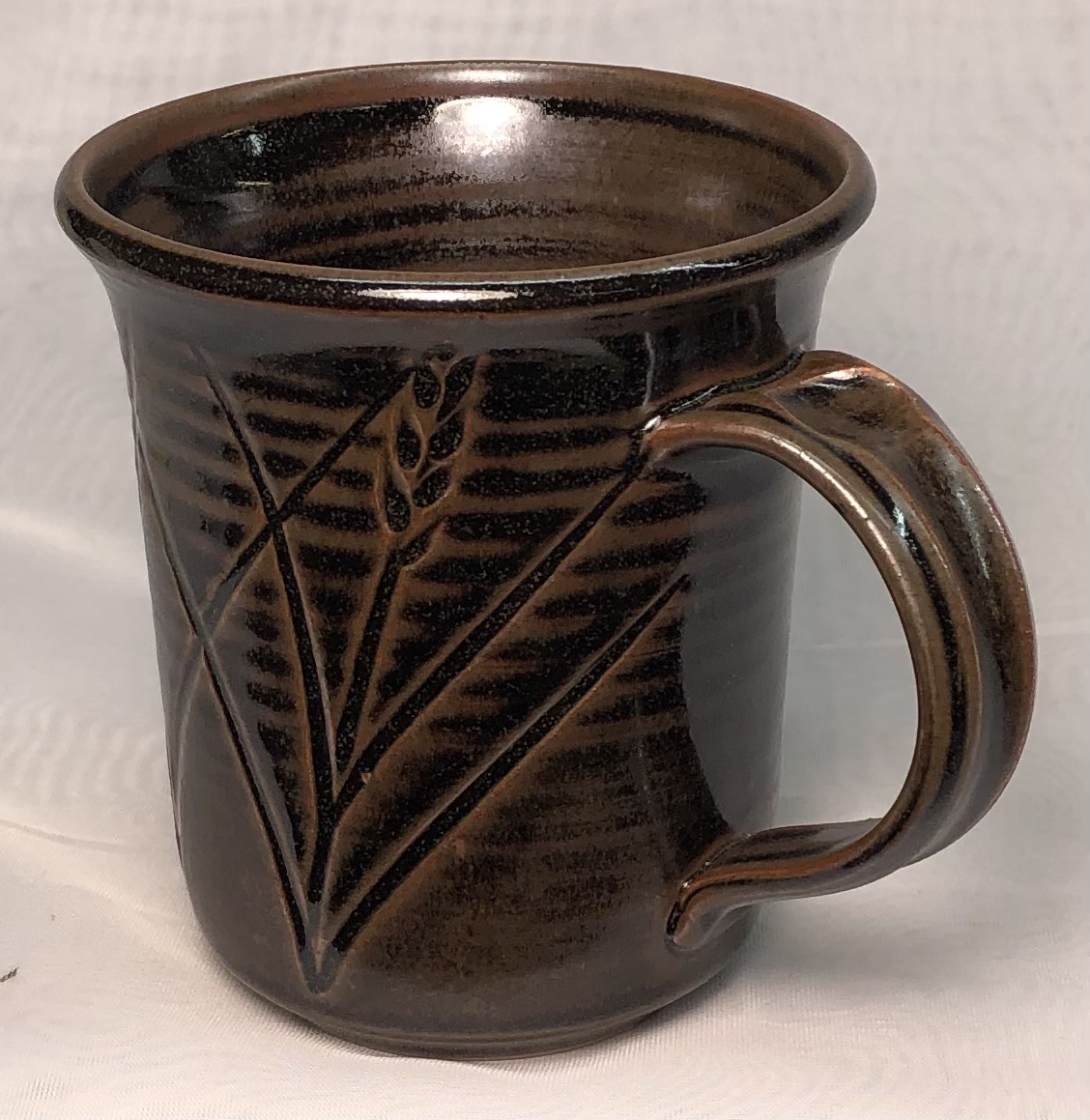

G2880A tenmoku on porcelain
Glaze application is thinner, reduction heavy.
Alternate Code Number:GA10-B
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Alberta Slip Tenmoku #2" id="66220" key="tEBKPsJ8" date="2022-02-26" codenum="G2880A" picturebasename=""> <recipelines> <recipeline material="Alberta Slip" amount="100.000" tolerance=""/> <recipeline material="Whiting" amount="5.000" tolerance=""/> <recipeline material="Iron Oxide Red #120" amount="2.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2011-08-02, Modified: 2022-02-26 20:15:07
Ravenscrag Tenmoku #1
|
Code # G2894 |
| Materials | Amt |
|---|---|
| Ravenscrag Slip | 90.000 |
| Whiting | 10.000 |
| Additions | |
|---|---|
| Iron Oxide | 10.000 |
Total:110.00
Auto Unity Formula
|
Si:Al: 8.3:1 7.5 (Molar:7.0) 12.8 Cost 12.41 per kg |
Notes
*Ravenscrags slip is a clear glaze by itself, with a little extra help to help (by adding the calcium carbonate) it has better melt fluidity. Like a normal tenmoku, this adds 10% iron.
However it is too melt fluid, the whiting should be reduced to 5 or eliminated.
Pictures

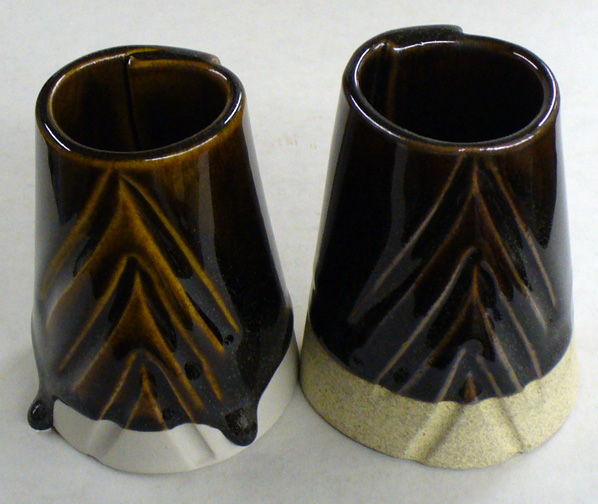

G2894 Ravenscrag Tenmoku on porcelains
G2894 Ravenscrag Tenmoku on dark bodies
Alternate Code Number:GR10-K
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Ravenscrag Tenmoku #1" id="66218" key="oFyQXQ1m" date="2022-02-26" codenum="G2894" picturebasename=""> <recipelines> <recipeline material="Ravenscrag Slip" amount="90.000" tolerance=""/> <recipeline material="Whiting" amount="10.000" tolerance=""/> <recipeline material="Iron Oxide" amount="10.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2011-07-29, Modified: 2022-02-26 20:00:41
Ravenscrag Tenmoku #2
|
Code # G2894A |
| Materials | Amt |
|---|---|
| Ravenscrag Slip | 95.000 |
| Whiting | 5.000 |
| Additions | |
|---|---|
| Iron Oxide | 10.000 |
Total:110.00
Auto Unity Formula
|
Si:Al: 8.3:1 7.3 (Molar:6.6) 11.1 Cost 12.35 per kg |
Notes
*Less calcium carbonate, this had less problems with running than G2894. Later, we went a little further, reducing the calcium carbonate to 3. Getting the right recipe will just be a matter of fine-tuning this amount.
Pictures
G2894A on left, G2880A center, GA10
G2894A on left, G2880A center, GA10-A pure Alberta Slip right.

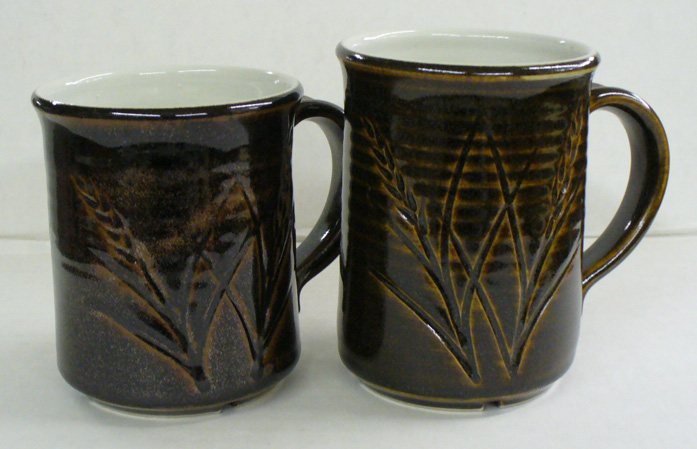

G2894A Ravenscrag Tenmoku fired mugs
Alternate Code Number:GR10-K1
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Ravenscrag Tenmoku #2" id="64410" key="GZyyKfXj" date="2022-02-26" codenum="G2894A" picturebasename=""> <recipelines> <recipeline material="Ravenscrag Slip" amount="95.000" tolerance=""/> <recipeline material="Whiting" amount="5.000" tolerance=""/> <recipeline material="Iron Oxide" amount="10.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2011-08-02, Modified: 2022-02-26 20:03:56
