G2934:G2926B Oatmeal Cone 6
|
Code # G3933A |
| Materials | Amt |
|---|---|
| G2934 Matte Glaze (G2934) | 80.000 |
| G2926B Glossy Glaze (G2926B) | 20.000 |
| Additions | |
|---|---|
| Red Iron Oxide | 1.500 |
| Tin Oxide | 5.000 |
| Rutile | 1.500 |
Total:108.00
Auto Unity Formula
|
Si:Al: 6.6:1 5.9 (Molar:5.9) 11.9 Cost 9.52 per kg |
Notes
*This is no longer recommended this recipe for this color. We have found that it is too prone to crawling and it does not interact enough with darker bodies. The G3933EF is better in every way.
This was an adjustment to our original G3933 for a little more matteness and a little more variegation (this has more iron, more G2934, more rutile.
The original theory behind this recipe was to be able to tune the desired matteness by adjusting a mix our base matte and glossy glazes.
For each 1000 powder we use 930 water (increasing as needed). This produces a creamy slurry that worked very well.
Pictures

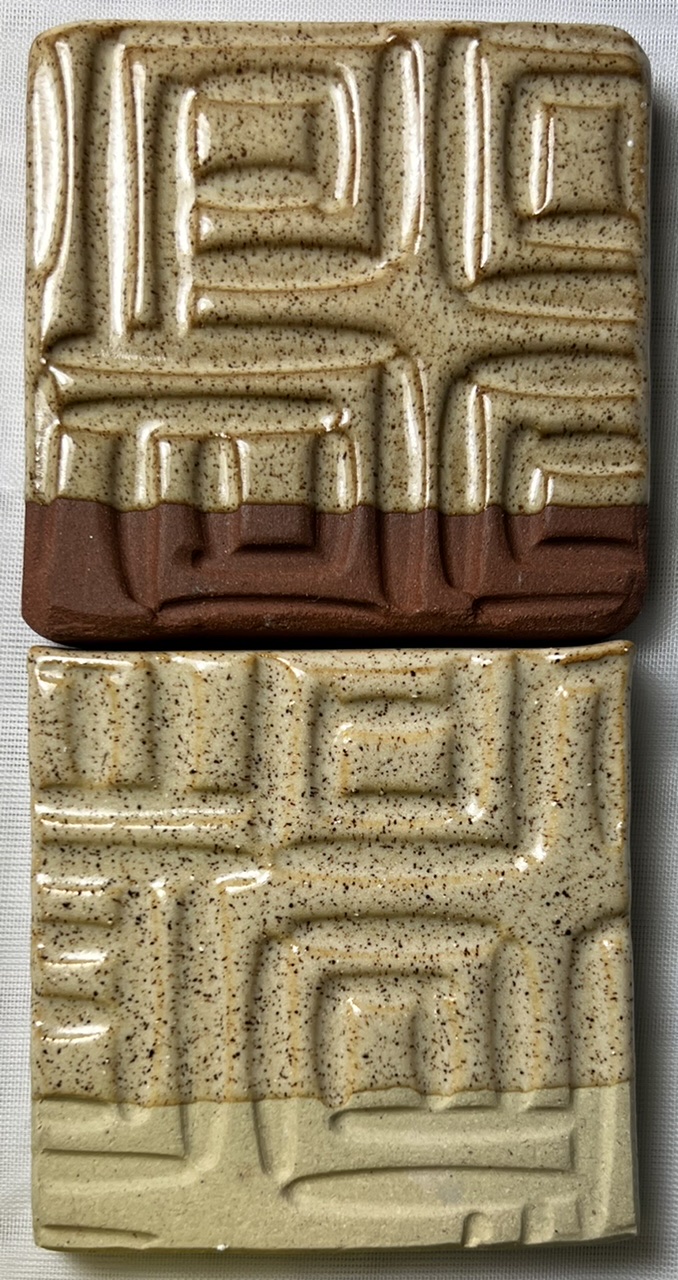

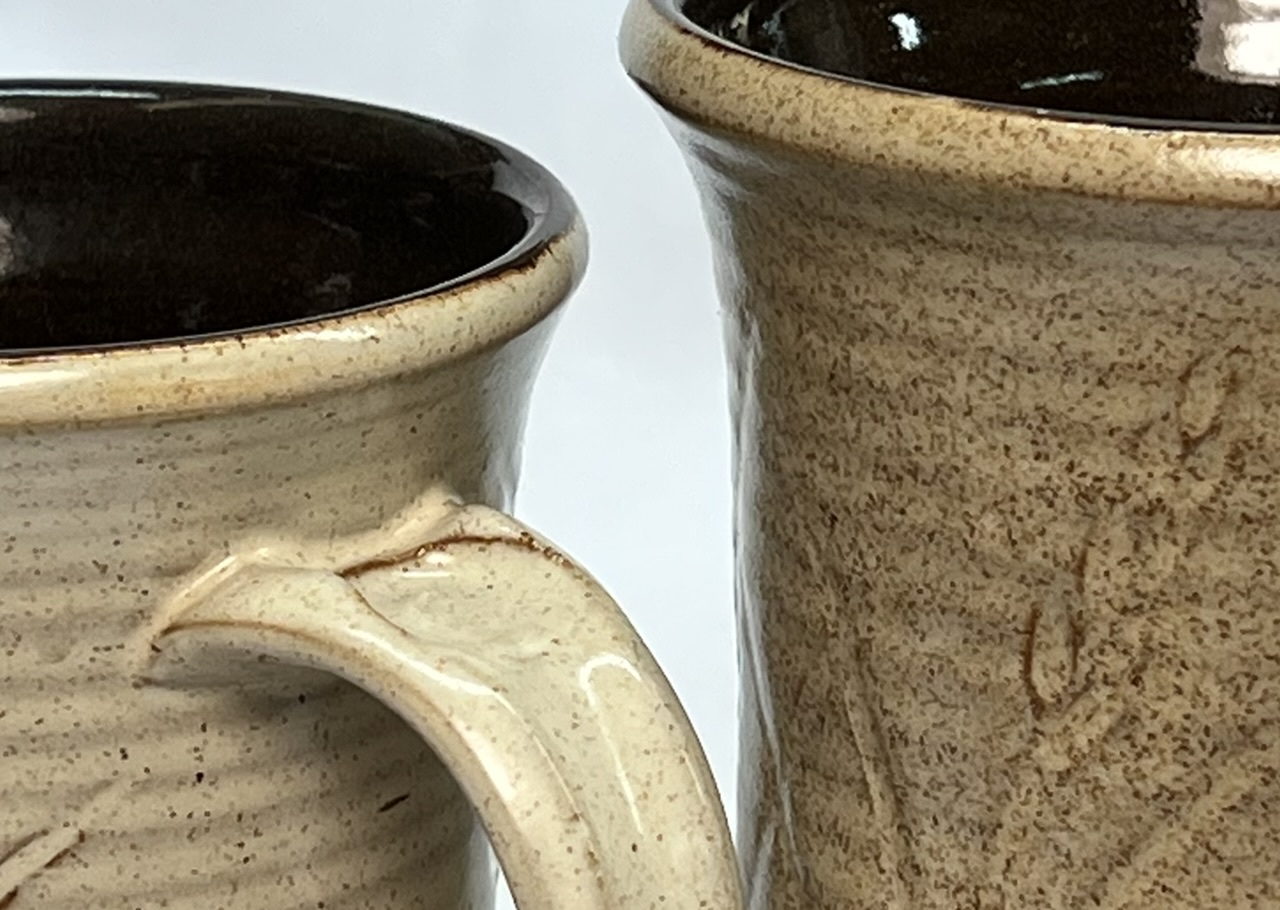

G3933 vs G3933A at cone 6
Using the C6DHSC schedule.
G3933A cone 5
Using the C5DHSC firing schedule.

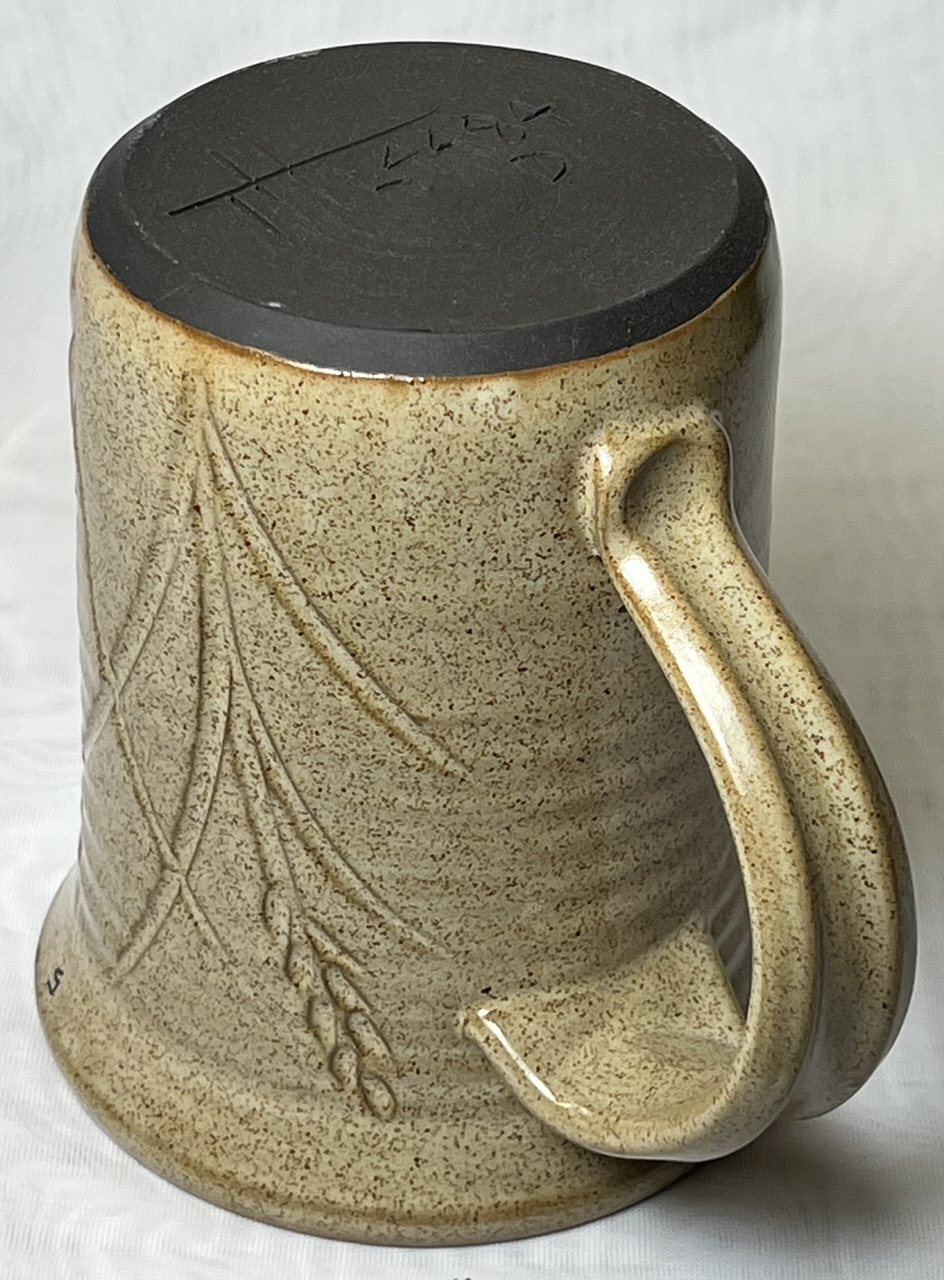

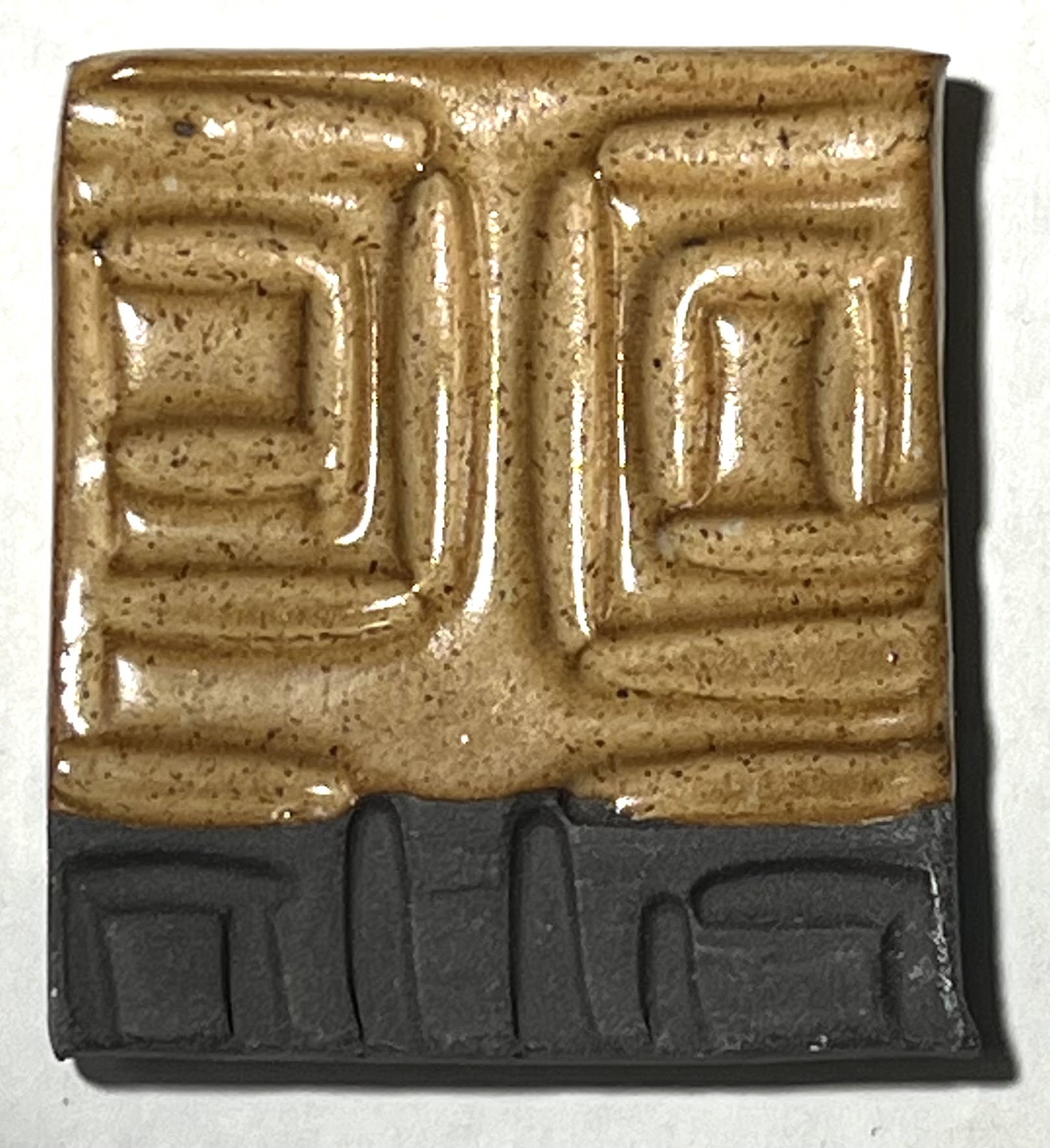

G3933A cone 5 on L4484D black porcelain
Using the C5DHSC firing schedule.

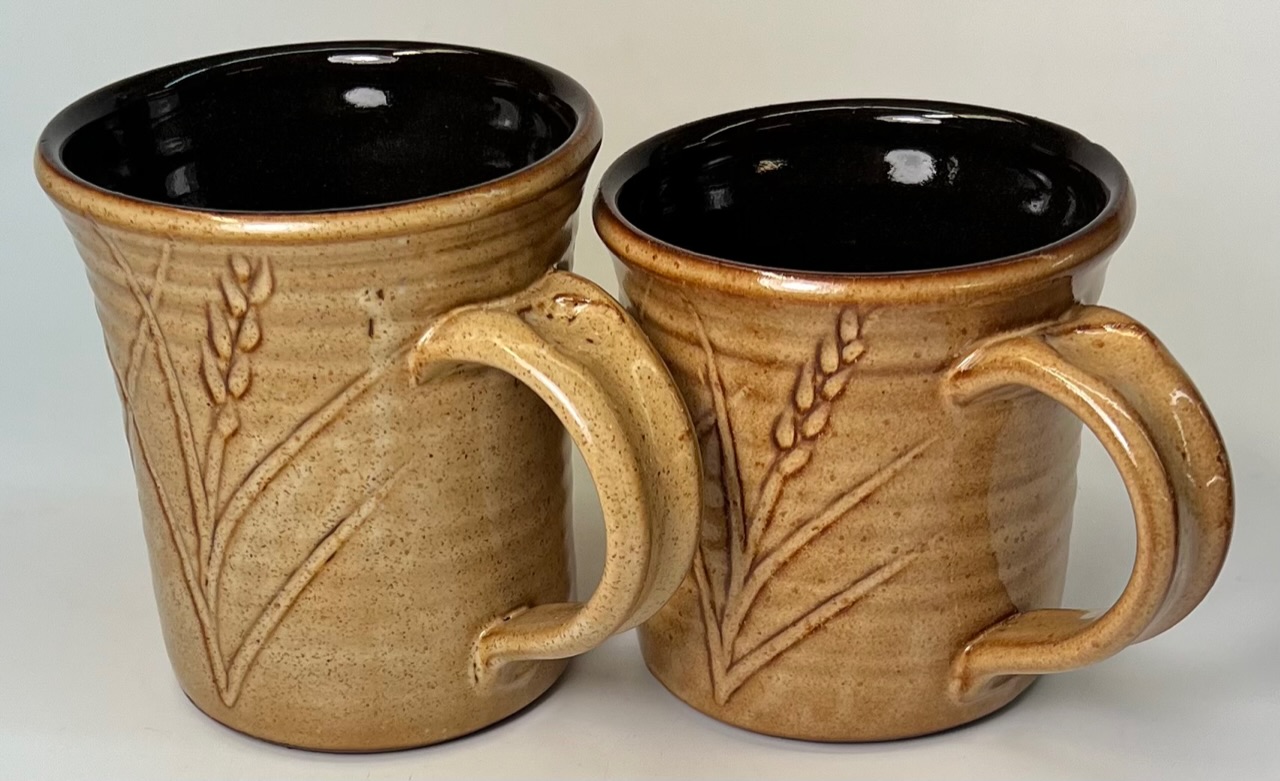

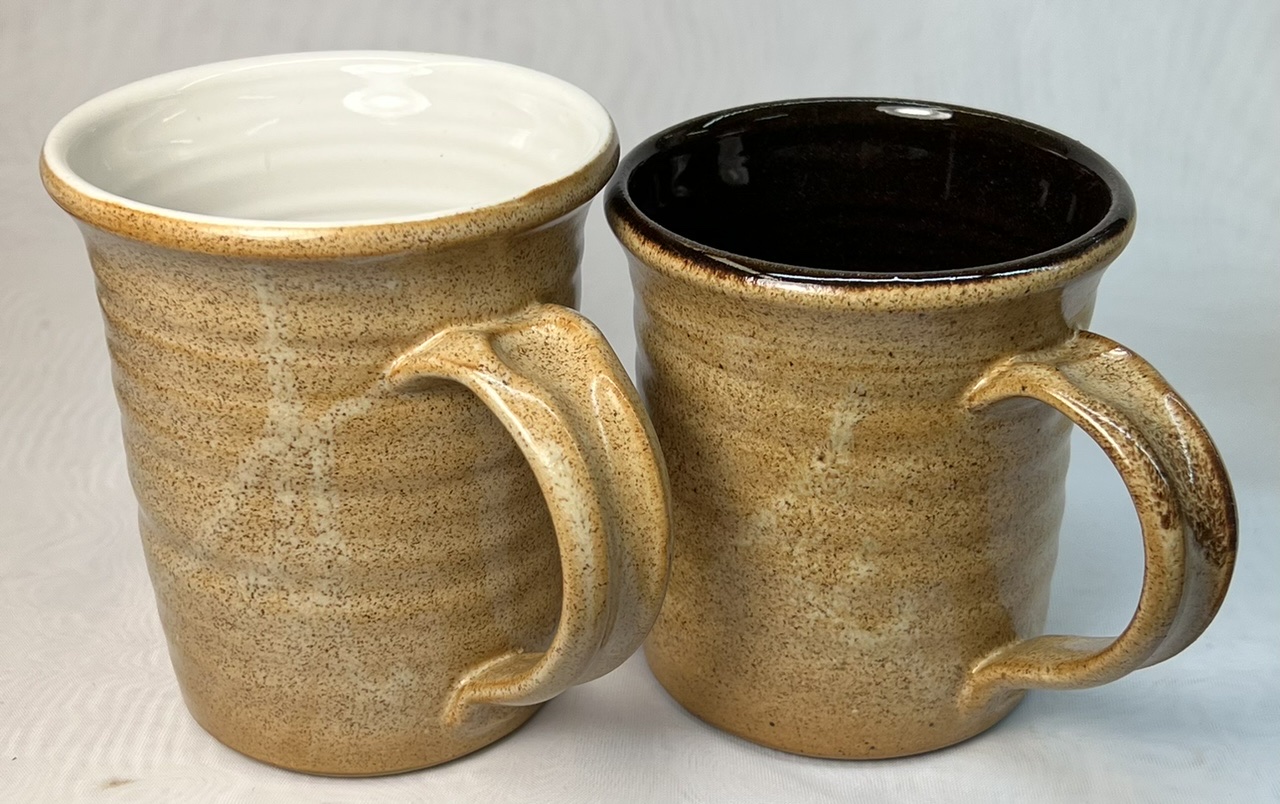

G3933A G2934:G2926B Oatmeal on dark, light body
Standard cone 6 C6DHSC firing schedule on M390, M340.

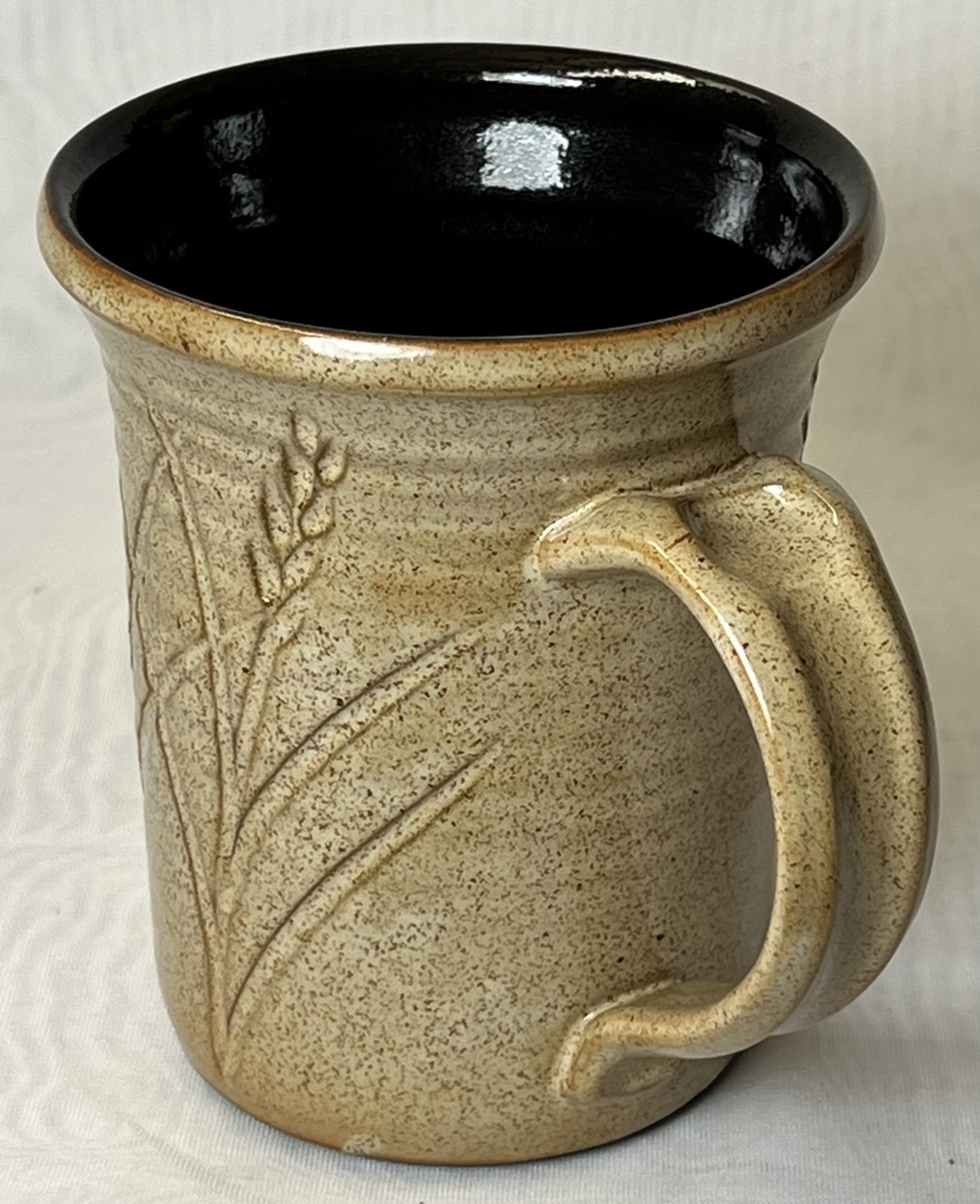

G3933A On M340, Coffee clay
Drop and soak, 250c/hr down to 1400C.
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G2934:G2926B Oatmeal Cone 6" id="211015" key="4btkstFS" date="2024-03-13" codenum="G3933A"> <recipelines> <recipeline material="G2934 Matte Glaze" lookup="G2934" amount="80.000" tolerance=""/> <recipeline material="G2926B Glossy Glaze" lookup="G2926B" amount="20.000" tolerance=""/> <recipeline material="Red Iron Oxide" amount="1.500" added="true"/> <recipeline material="Tin Oxide" amount="5.000" added="true"/> <recipeline material="Rutile" amount="1.500" added="true"/> </recipelines> </recipe> </recipes>
Born: 2021-10-27, Modified: 2024-03-13 18:03:42
G3933 Oatmeal Ravenscrag #2
|
Code # G3933E |
| P | Materials | Amt | |
|---|---|---|---|
| Ravenscrag Slip | 26.500 | 26.47% | |
| Ravenscrag Slip 1000F Roast | 22.000 | 21.98% | |
| Calcined Kaolin | 14.500 | 14.49% | |
| Ferro Frit 3249 | 11.500 | 11.49% | |
| Dolomite | 9.700 | 9.69% | |
| Ferro Frit 3110 | 7.100 | 7.09% | |
| Silica 325 (Silica) | 8.800 | 8.79% |
| P | Additions | ||
|---|---|---|---|
| * | Tin Oxide | 5.000 | 5.00% |
| * | Rutile | 1.500 | 1.50% |
| * | Red Iron Oxide | 1.500 | 1.50% |
Total:108.10
Auto Unity Formula
|
Si:Al: 6.6:1 6.1 (Molar:5.8) 7.6 |
Notes
*This is the product of an effort to achieve the warm and rich color of G3933 without the tendency to crawl. To do that we have used Ravenscrag Slip as the base and sourced MgO from dolomite and Ferro Frit frit 3249 (earlier tests sourcing MgO from talc were unsuccessful, off-gassing from the talc was puffing up the glaze with micro-bubbles).
Requires about 45:55 water:powder to make a good slurry. An advantage of this recipe is the ability to adjust the ratio of raw:calcine Ravenscrag Slip to tune the properties of the slurry (drying hardness, suspension).
Pictures

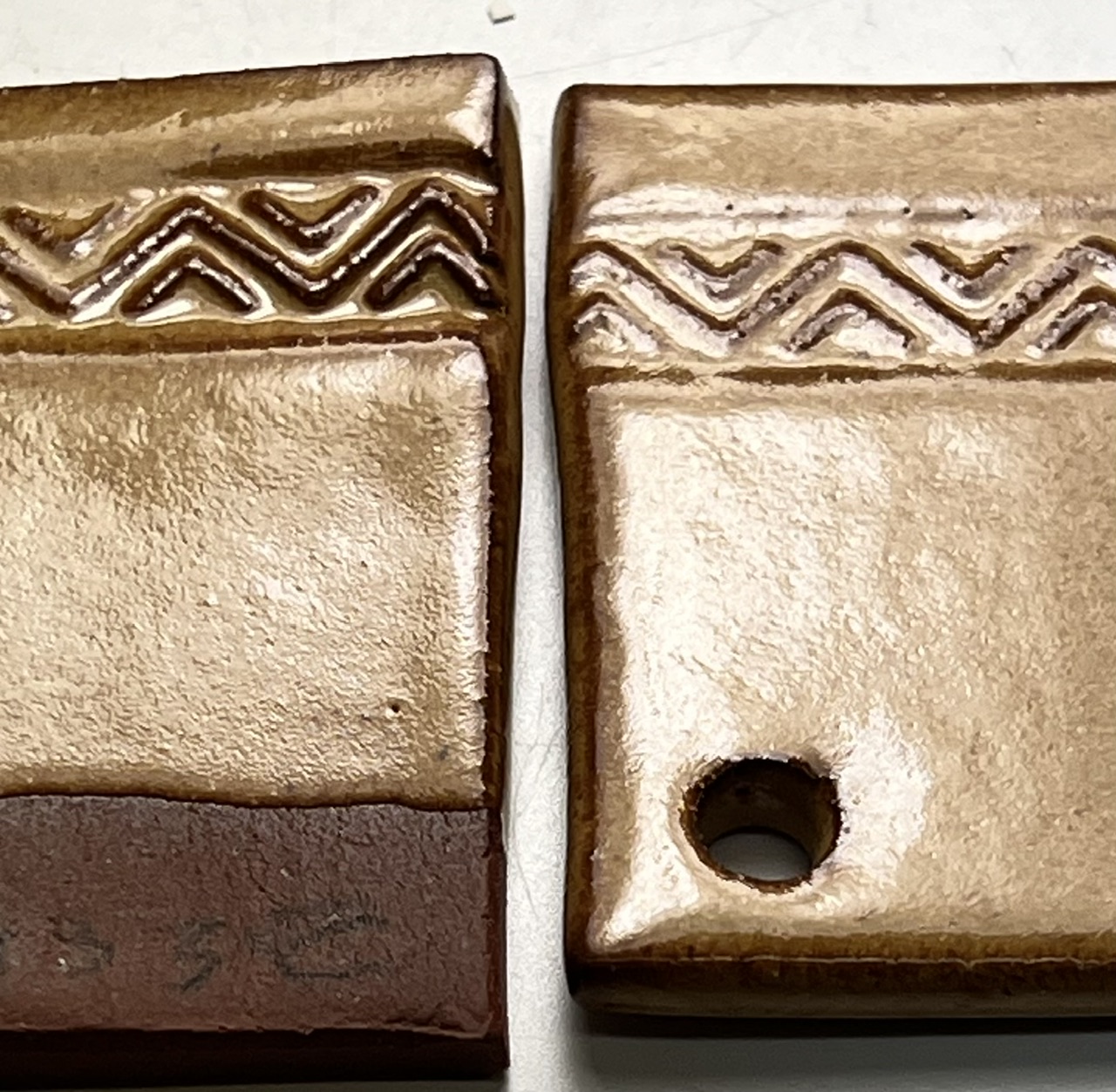

g3933D vs G3933 vs G3933E
G3933E is glossy but is not puffing up like G3933D does. The original G3933 (centre) is the target surface.

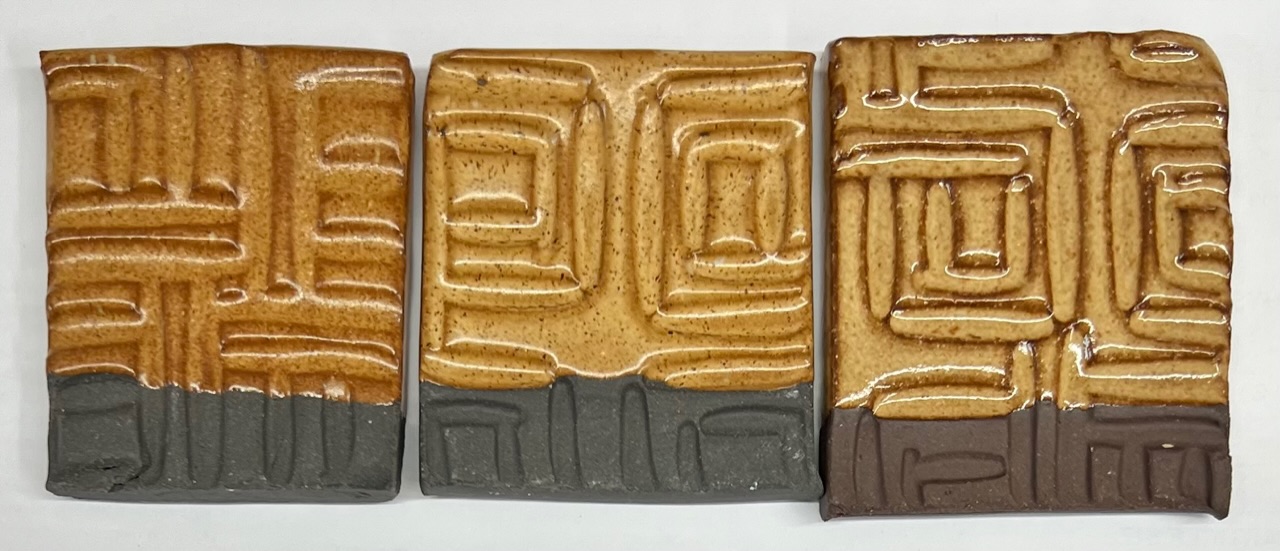

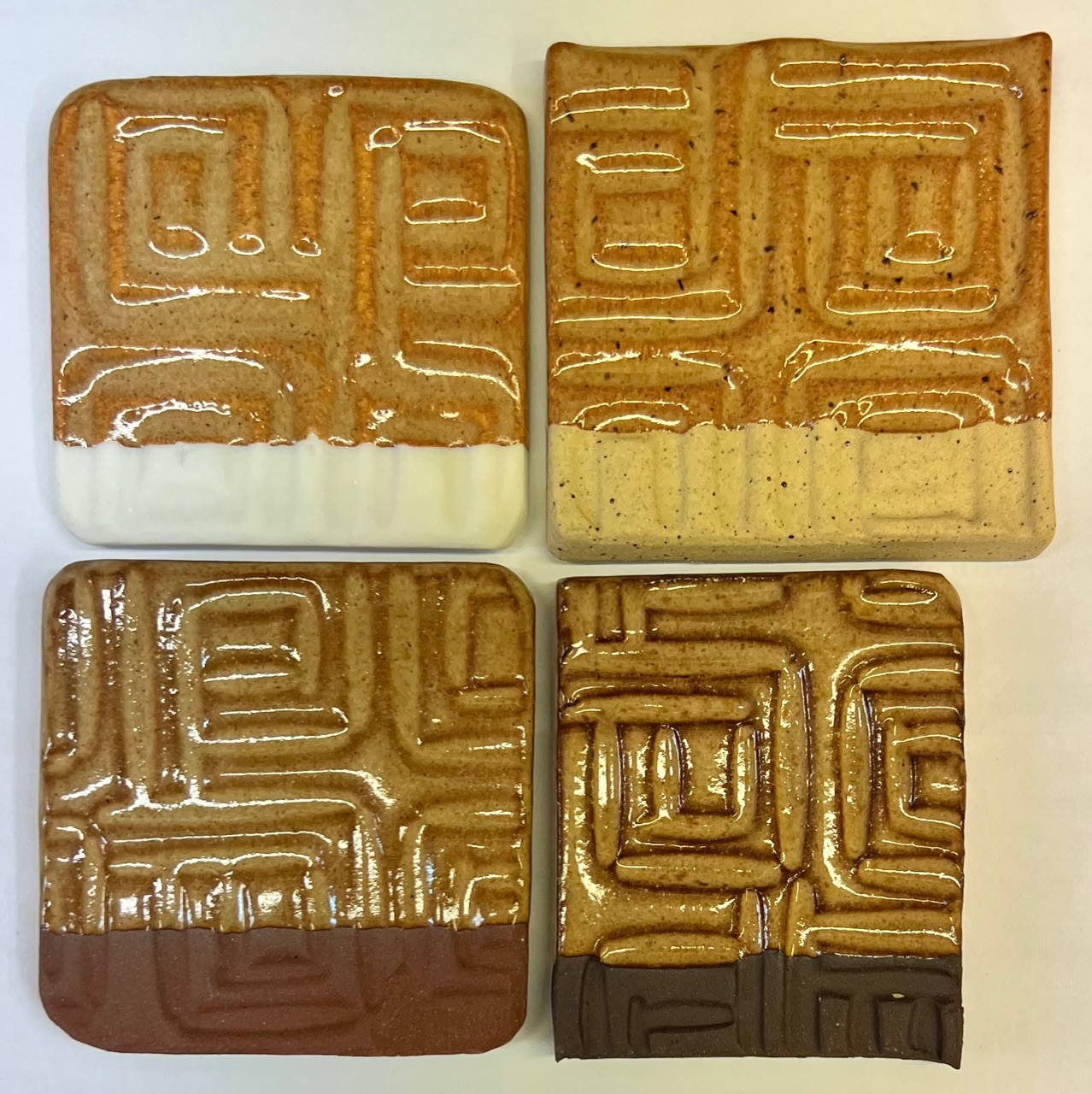

G3933E on porcelain, M340, M390, Coffee Clay
Too glossy (this was not a slow cool firing). However there is no crawling.

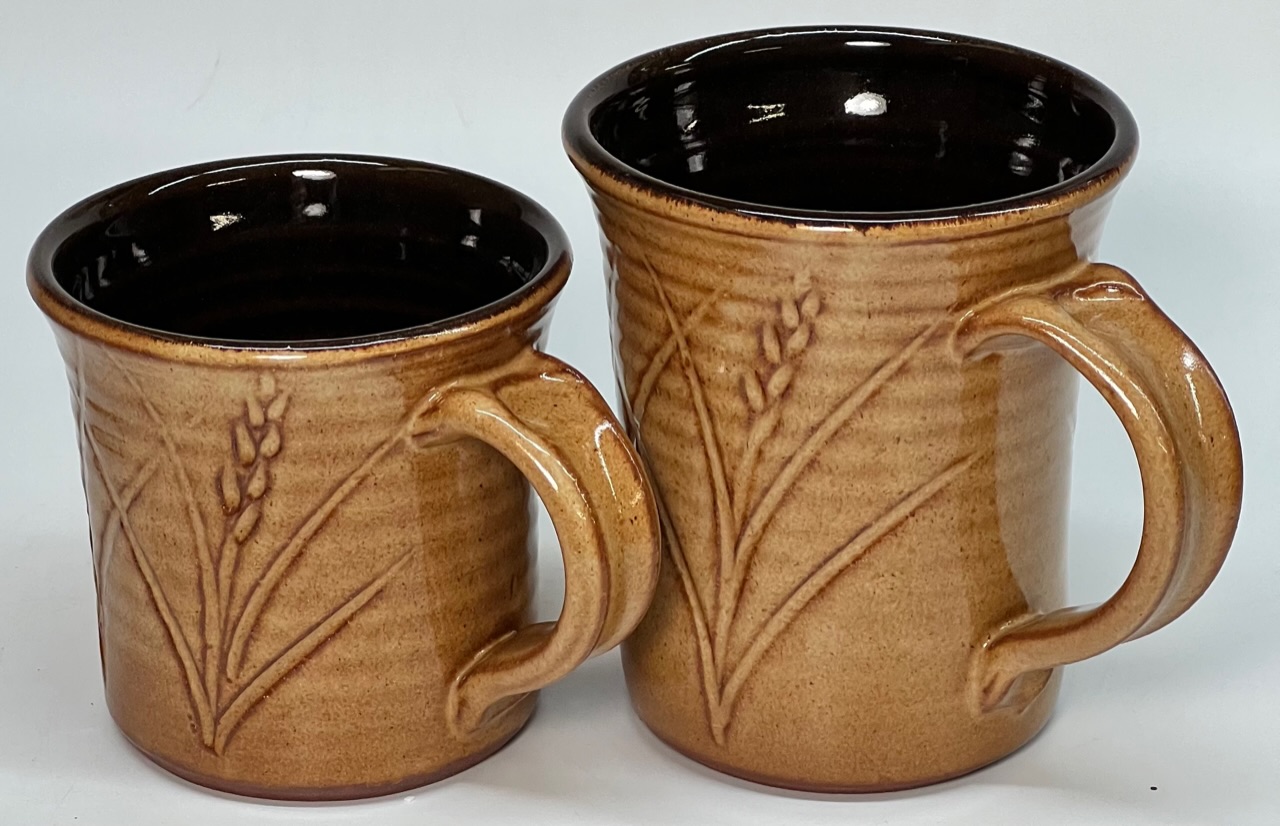

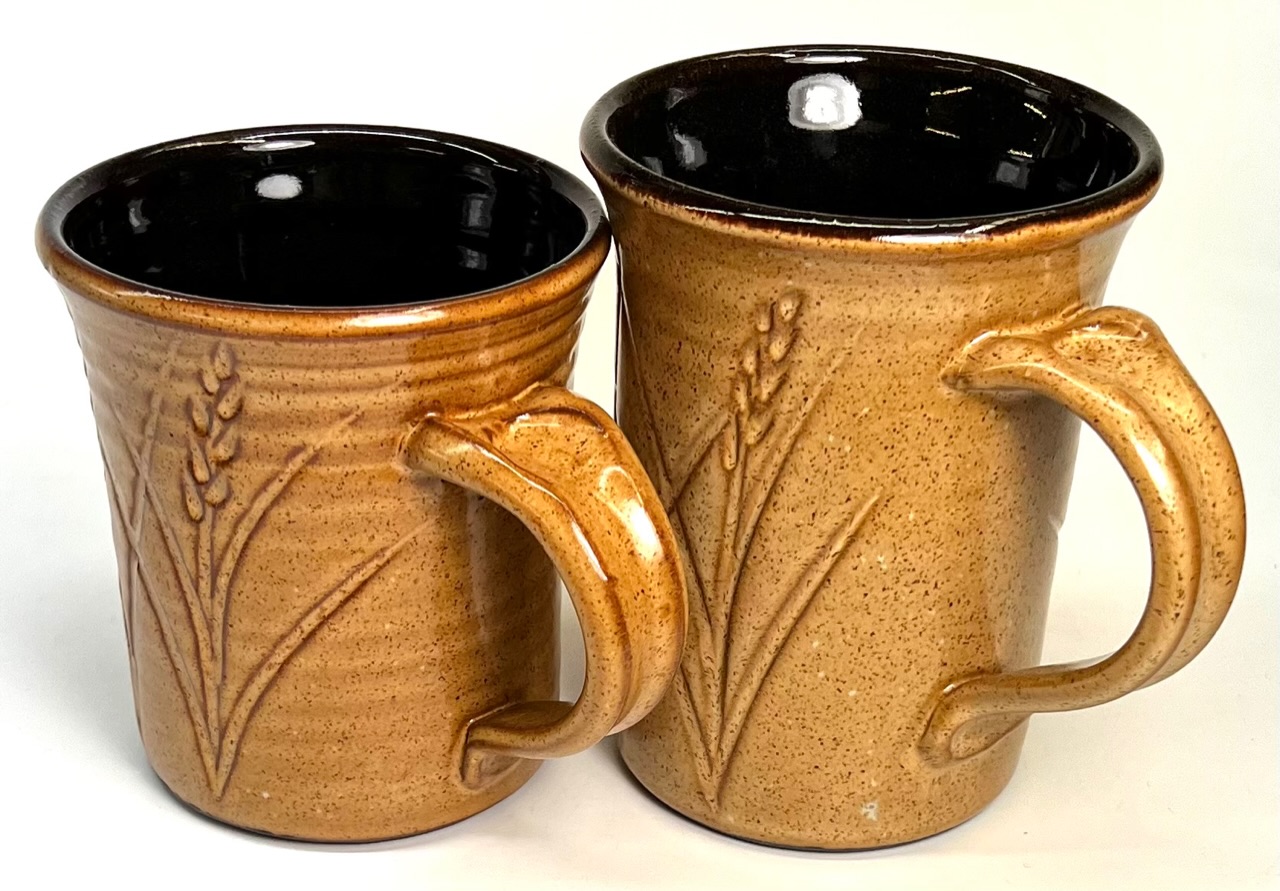

G3933 vs G3933E mugs
G3933D has no crawling (while the G3933 has a lot). This was not a slow cool firing.

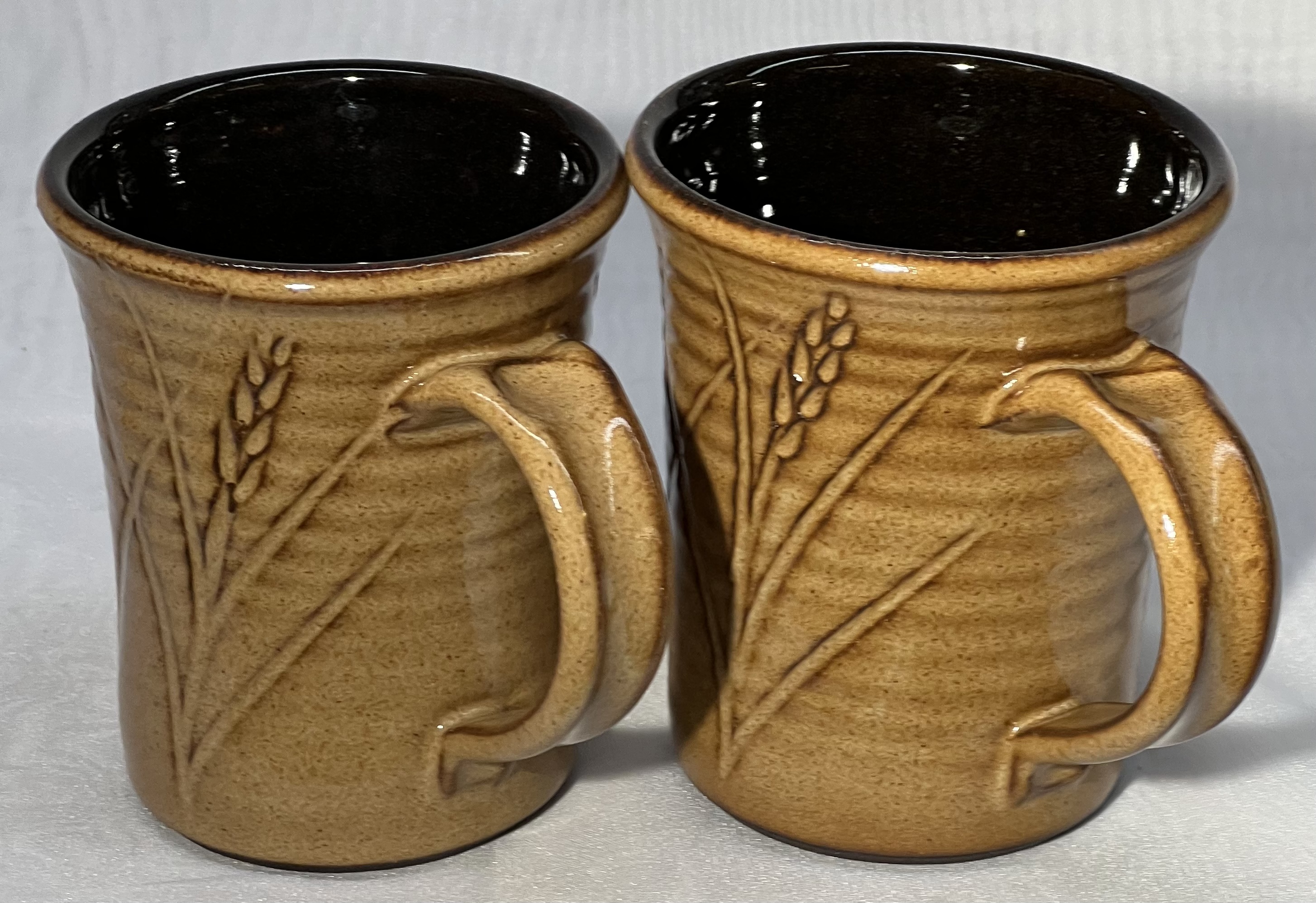

g3933D vs G3933E mugs
G3933D is puffing up (because of the talc). G3933E has no crawling but is a little too glossy. This was drop-and-hold but not slow cool firing.

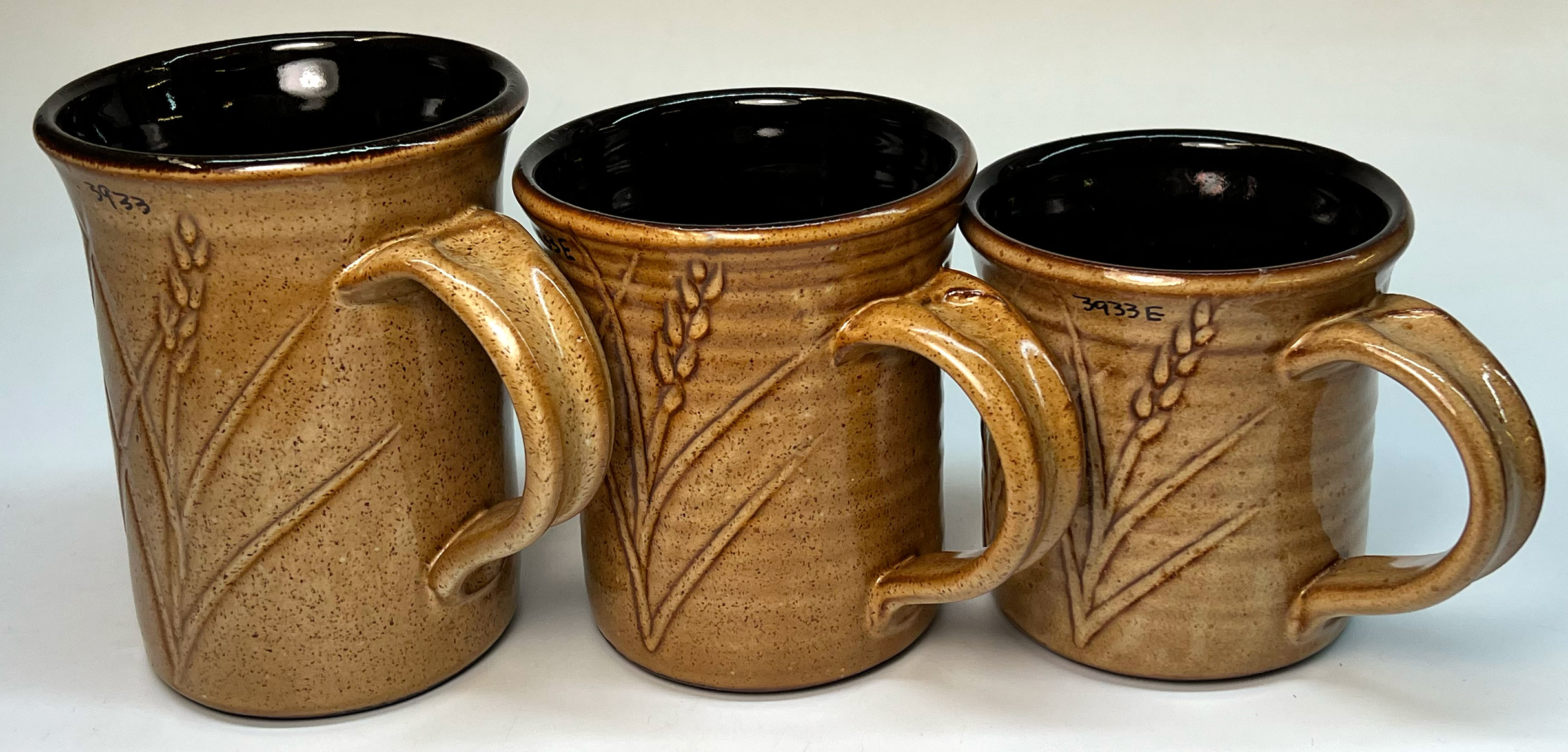

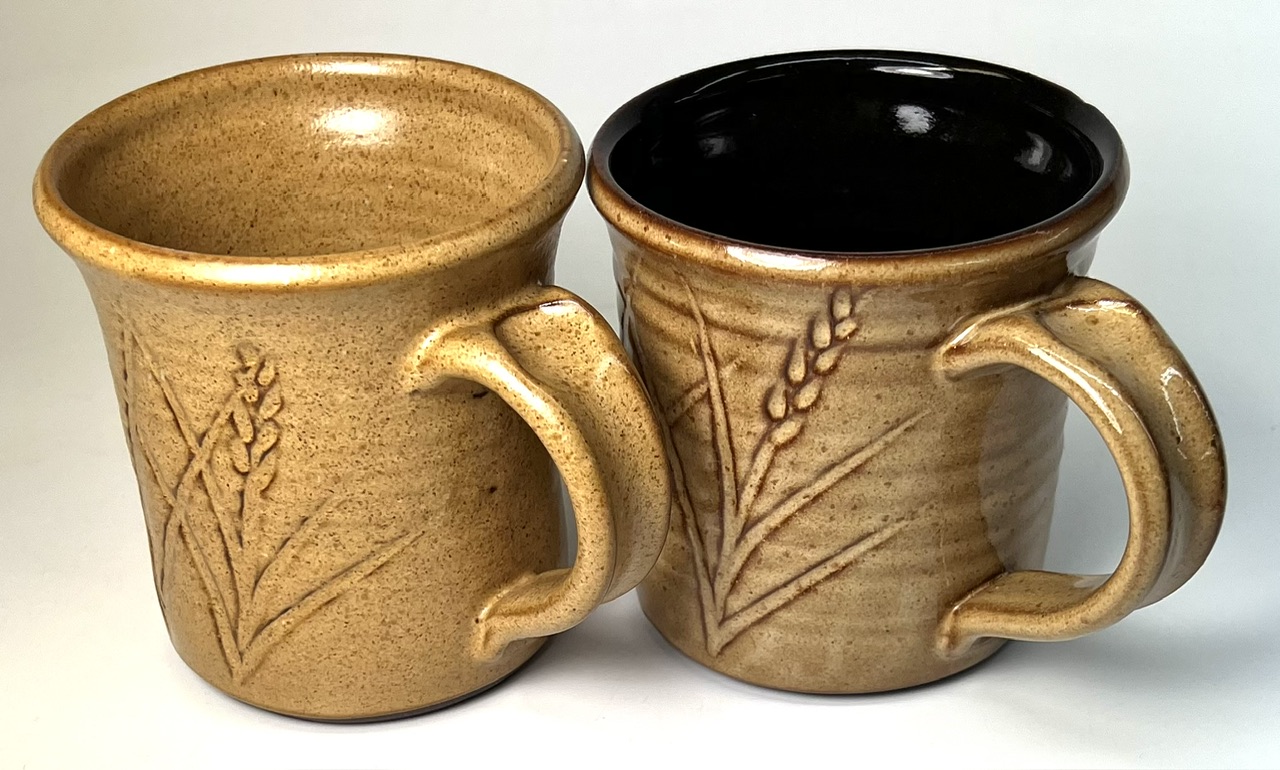

G3933 vs G3933E slow and fast cooled
The G3933E has richer color than the original G3933. And it is flexible to be glossy or matte depending on cooling.
G3933E Vs G3933
Slow cool firing. The G3933E is giving a better surface.
Untitled
Typecodes
C6-Cone 6 Glazes
Alternate Code Number:MG6CDM
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G3933 Oatmeal Ravenscrag #2" id="243984" key="hdh1Ldwx" date="2024-03-08" typecodes="C6" codenum="G3933E" picturebasename=""> <recipelines> <recipeline material="Ravenscrag Slip" amount="26.500" tolerance=""/> <recipeline material="Ravenscrag Slip 1000F Roast" amount="22.000" tolerance=""/> <recipeline material="Calcined Kaolin" amount="14.500" tolerance=""/> <recipeline material="Ferro Frit 3249" amount="11.500" tolerance=""/> <recipeline material="Dolomite" amount="9.700" tolerance=""/> <recipeline material="Ferro Frit 3110" amount="7.100" tolerance=""/> <recipeline material="Silica 325" lookup="Silica" amount="8.800" tolerance=""/> <recipeline material="Tin Oxide" amount="5.000" added="true"/> <recipeline material="Rutile" amount="1.500" added="true"/> <recipeline material="Red Iron Oxide" amount="1.500" added="true"/> </recipelines> </recipe> </recipes>
Born: 2014-03-21, Modified: 2024-03-08 19:52:15
G3933 Oatmeal Ravenscrag #3
|
Code # G3933F |
| Materials | Amt |
|---|---|
| Ravenscrag Slip | 21.500 |
| Ravenscrag Slip 1000F Roast | 18.000 |
| Calcined Kaolin | 17.500 |
| Ferro Frit 3249 | 11.000 |
| Dolomite | 13.000 |
| Fusion Frit F-75 | 6.000 |
| Silica 325 (Silica) | 13.000 |
| Additions | |
|---|---|
| Tin Oxide | 5.000 |
| Rutile | 1.500 |
| Red Iron Oxide | 1.500 |
Total:108.00
Auto Unity Formula
|
Si:Al: 6.5:1 5.9 (Molar:5.7) 8.7 Cost 0.06 per kg |
Notes
*Adds MgO.
1000 powder, 900 water about right.
This is too matte.
Pictures
G3933E (top) vs G3933F (bottom)
Fired cone 6 normal cool.
The G3933E is glossier. The G3933F is too matte (the breaking-where-thin effect is being muted).
G3933F on M390 slow cool firing - Too glossy
G3933E vs F
G2933E and G3933F. The F has a little more MgO (0.39 vs 0.35).
Typecodes
C6-Cone 6 Glazes
Alternate Code Number:MG6CDM
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G3933 Oatmeal Ravenscrag #3" id="244534" key="ojC3viRE" date="2024-03-08" typecodes="C6" codenum="G3933F" picturebasename=""> <recipelines> <recipeline material="Ravenscrag Slip" amount="21.500" tolerance=""/> <recipeline material="Ravenscrag Slip 1000F Roast" amount="18.000" tolerance=""/> <recipeline material="Calcined Kaolin" amount="17.500" tolerance=""/> <recipeline material="Ferro Frit 3249" amount="11.000" tolerance=""/> <recipeline material="Dolomite" amount="13.000" tolerance=""/> <recipeline material="Fusion Frit F-75" amount="6.000" tolerance=""/> <recipeline material="Silica 325" lookup="Silica" amount="13.000" tolerance=""/> <recipeline material="Tin Oxide" amount="5.000" added="true"/> <recipeline material="Rutile" amount="1.500" added="true"/> <recipeline material="Red Iron Oxide" amount="1.500" added="true"/> </recipelines> </recipe> </recipes>
Born: 2014-03-21, Modified: 2024-03-08 18:29:32
G3933 Oatmeal Ravenscrag #4
|
Code # G3933EF |
| Materials | Amt |
|---|---|
| Ravenscrag Slip | 24.000 |
| Ravenscrag Slip 1000F Roast | 20.000 |
| Ferro Frit 3110 | 6.550 |
| Ferro Frit 3249 | 11.250 |
| Dolomite | 11.350 |
| Calcined Kaolin | 16.000 |
| Silica 325 (Silica) | 10.900 |
| Additions | |
|---|---|
| Tin Oxide | 5.000 |
| Rutile | 1.500 |
| Red Iron Oxide | 1.500 |
Total:108.05
Auto Unity Formula
|
Si:Al: 6.5:1 6.0 (Molar:5.8) 8.2 Cost 0.06 per kg |
Notes
*This is now our recipe of choice. It has a better surface, produces richer brown and variegated tones on dark burning bodies, it has better application properties, it does not crawl and it is much less prone to go on too thin.
The C6DHSC firing schedule produces a nice silky matte. Cooling at 250F/hr produces a glossy. Cooling slower (e.g. 100F/hr) would be more matte.
For 1000 powder we use 800 water (and add more if needed). This give a creamy slurry that needs no additions to be thixotropic.
Pictures
G3933E vs G3933EF Cone 6 slow cool
G3933E vs G3933EF Cone 6 slow cool
The EF is only a tiny bit more matte.
G3933A vs G3933EF
Cone 6 on coffee clay, slow cool @ 250f/hr.

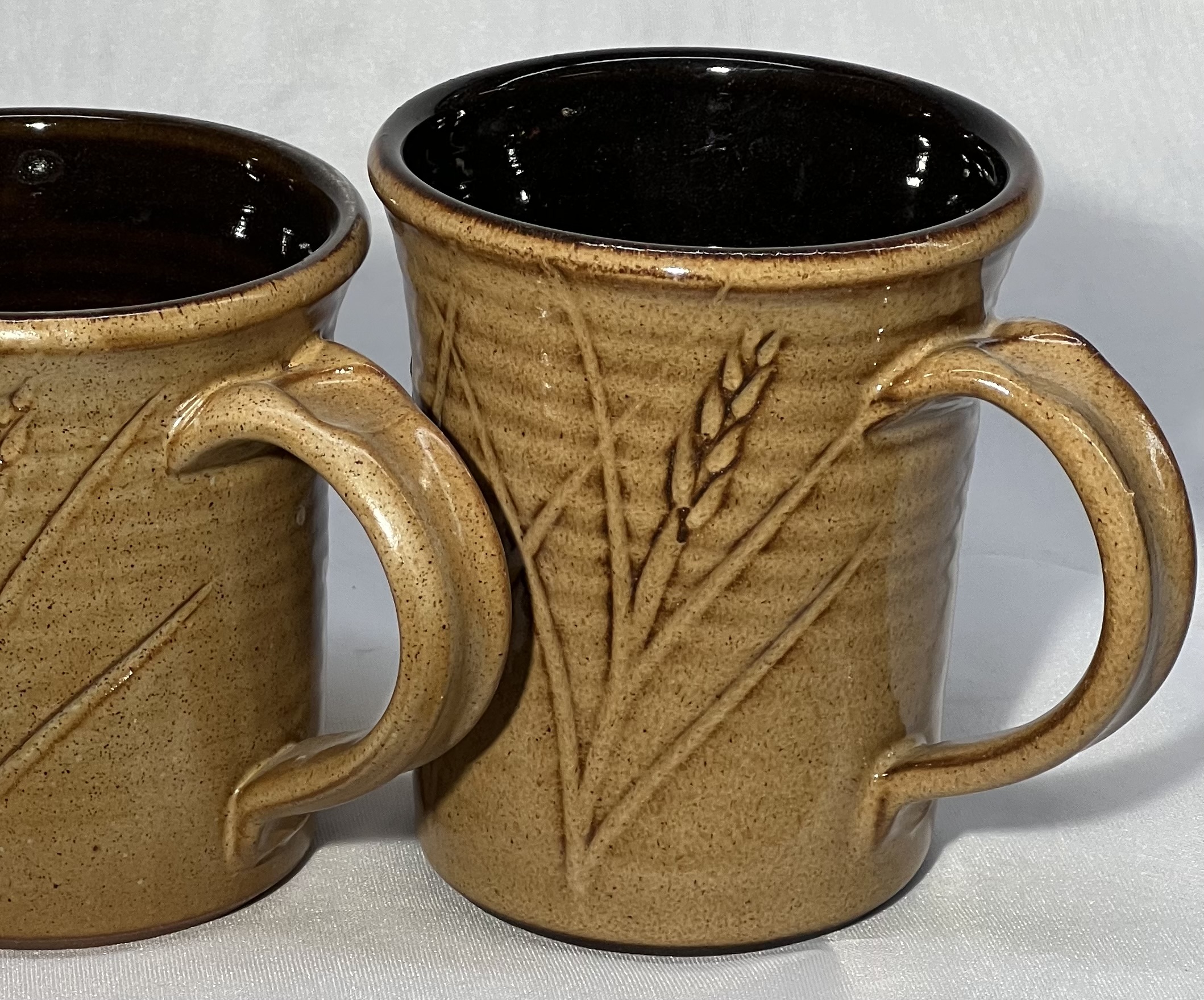

G3933EF at cone 6 on Coffee Clay
These are fired using the C6DHSC schedule. The one on the right was cooled at 150F/hr and is more matte than the one on the left (cooled 250F/hr). The one on the right is also interacting more with the Plainsman Coffee Clay underneath.
Typecodes
C6-Cone 6 Glazes
Alternate Code Number:MG6CDM
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="G3933 Oatmeal Ravenscrag #4" id="245842" key="cbWiFGQT" date="2024-03-13" typecodes="C6" codenum="G3933EF" picturebasename=""> <recipelines> <recipeline material="Ravenscrag Slip" amount="24.000" tolerance=""/> <recipeline material="Ravenscrag Slip 1000F Roast" amount="20.000" tolerance=""/> <recipeline material="Ferro Frit 3110" amount="6.550" tolerance=""/> <recipeline material="Ferro Frit 3249" amount="11.250" tolerance=""/> <recipeline material="Dolomite" amount="11.350" tolerance=""/> <recipeline material="Calcined Kaolin" amount="16.000" tolerance=""/> <recipeline material="Silica 325" lookup="Silica" amount="10.900" tolerance=""/> <recipeline material="Tin Oxide" amount="5.000" added="true"/> <recipeline material="Rutile" amount="1.500" added="true"/> <recipeline material="Red Iron Oxide" amount="1.500" added="true"/> </recipelines> </recipe> </recipes>
Born: 2014-03-21, Modified: 2024-03-13 18:08:15
