Cone 10 Marbled Red Glaze
|
Code # G2571D1 |
| Materials | Amt |
|---|---|
| Wollastonite | 21.000 |
| Custer Feldspar | 32.000 |
| EP Kaolin | 20.000 |
| Calcined Kaolin | 9.000 |
| Talc | 14.000 |
| Fusion Frit F-69 | 4.000 |
| Additions | |
|---|---|
| Titanium | 3.000 |
| *Mason 6021 Red Stain | 6.000 |
Total:109.00
Auto Unity Formula
|
Si:Al: 5.6:1 6.8 (Molar:6.4) 3.7 Cost 0.80 per kg |
Notes
*This adds titanium and red stain to the new fritted base of G2571B. Fabulous results. The amount of titanium in the previous test was too little high (losing a bit of the silky feel of the surface), this reduces it to 3%. This also increases the red stain from 5 to 6.
2000 water and 2000 powder worked well.
Mar 2023: Tests were done to dilute this up to 50:50. The diluted versions do give a better quality surface yet still have good color.
Pictures

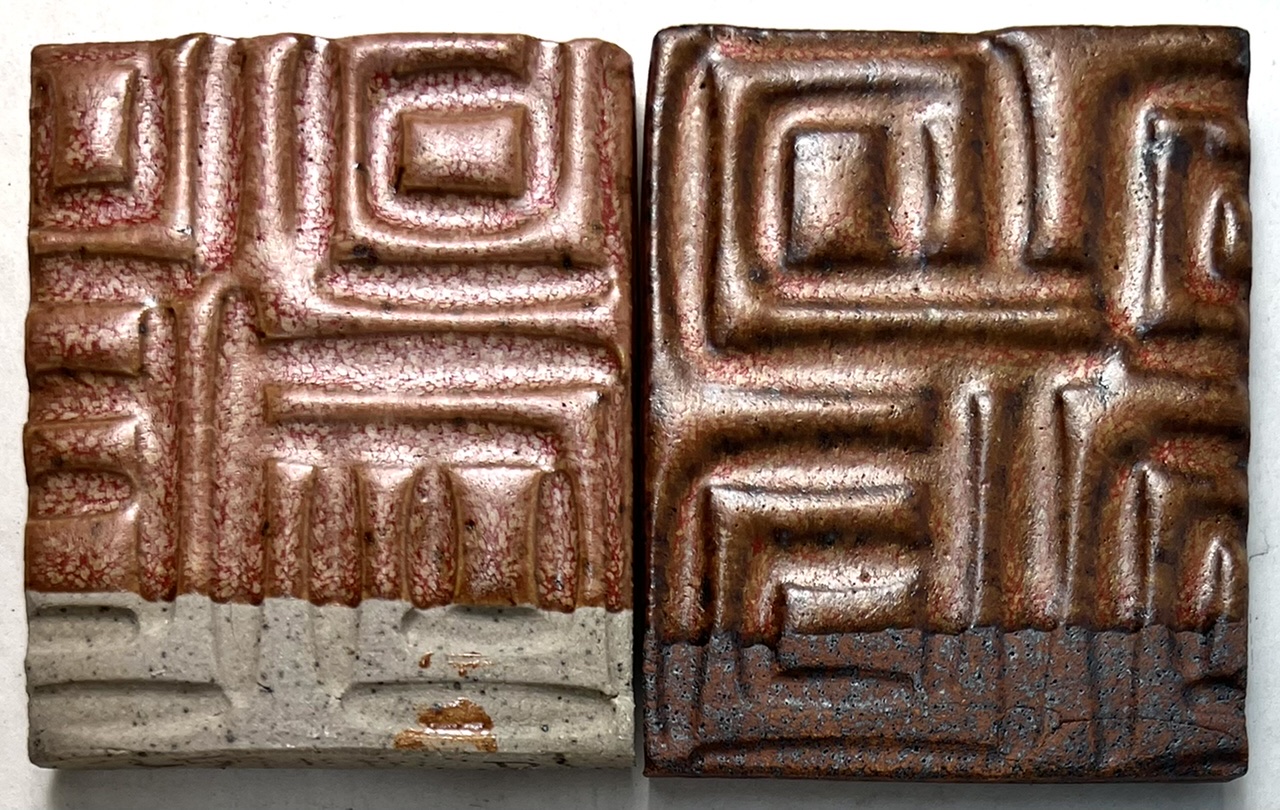

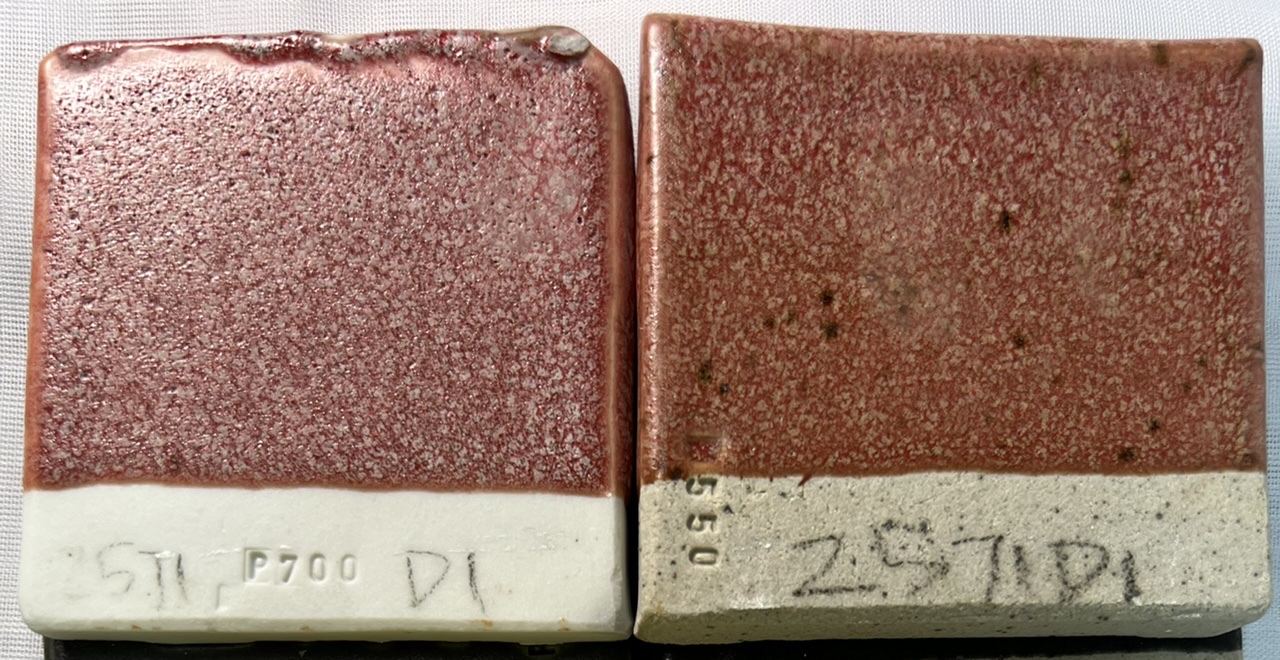

G2571D1 on P600, H550

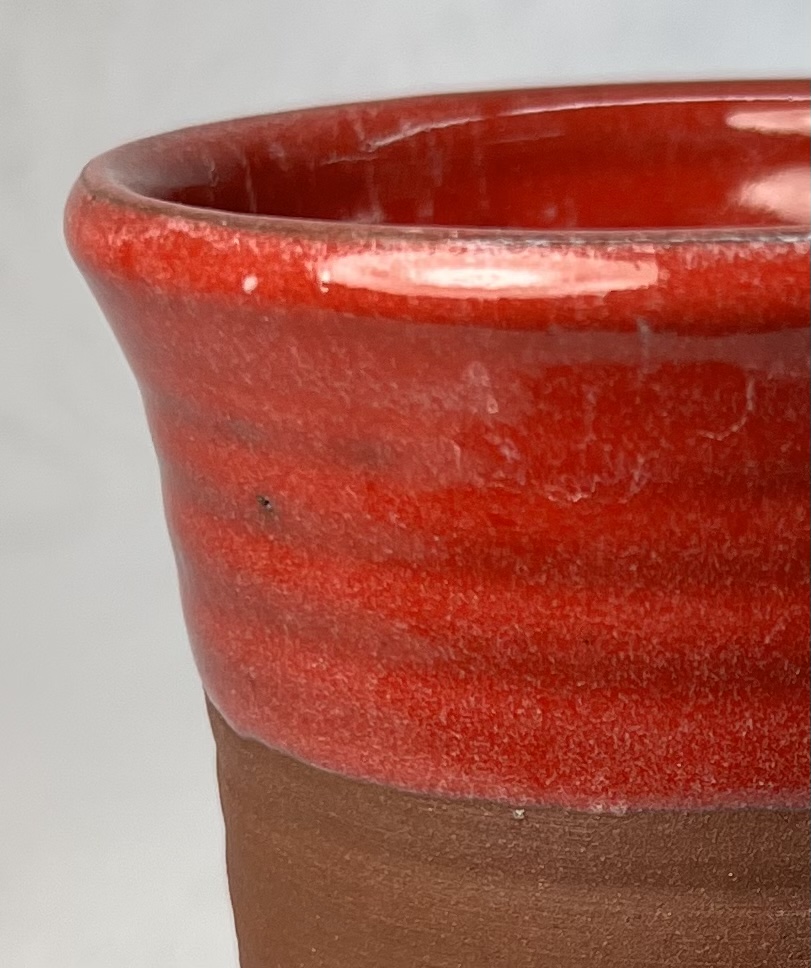

G2571D1 on H550, H570 at cone 10R

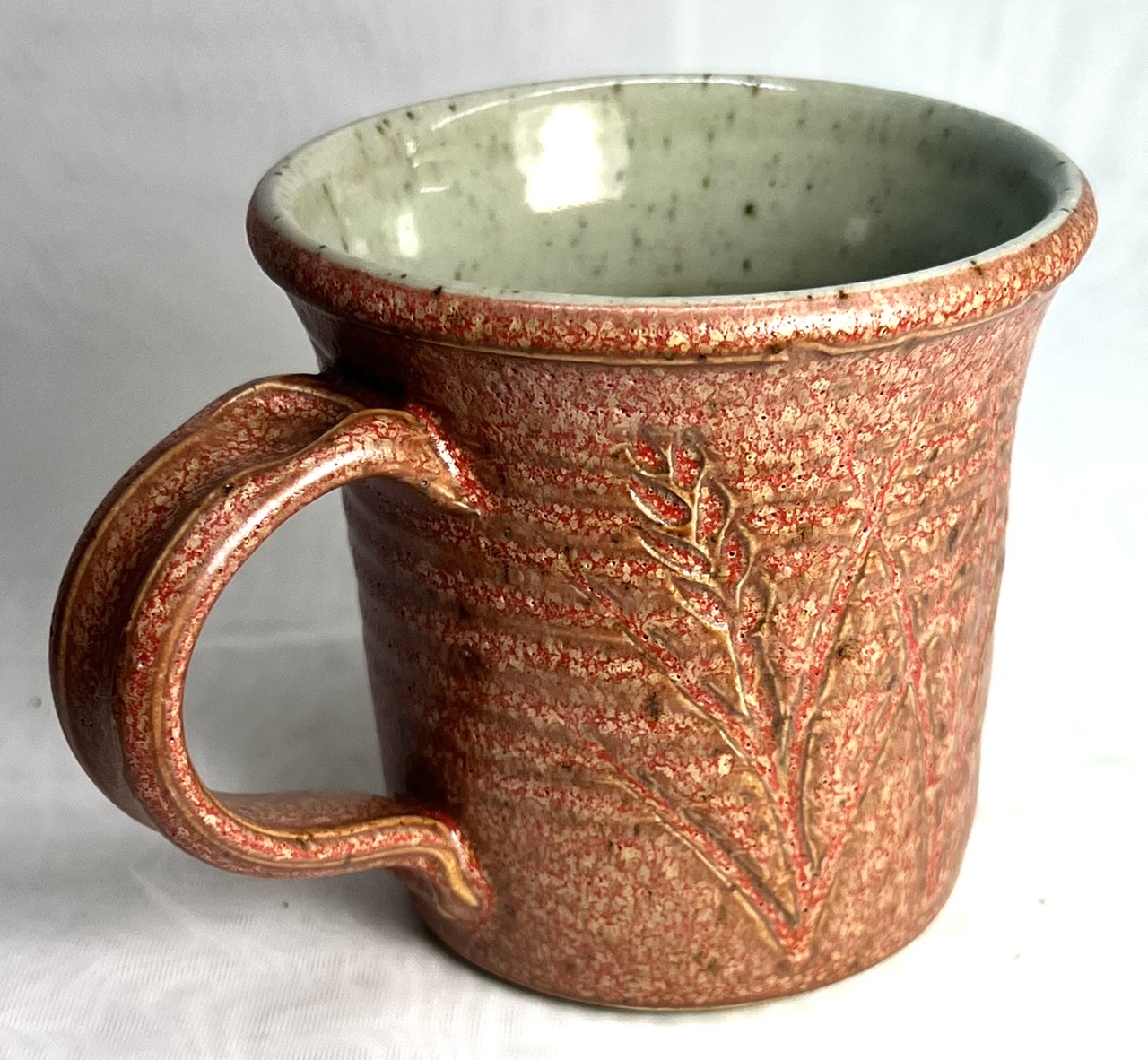

L4475B P600 cone 10ox mug
Glaze is G2571D1 and G3910A
Cone 10ox firing, drop and hold firing but not slow cool.
This crazed after a week.

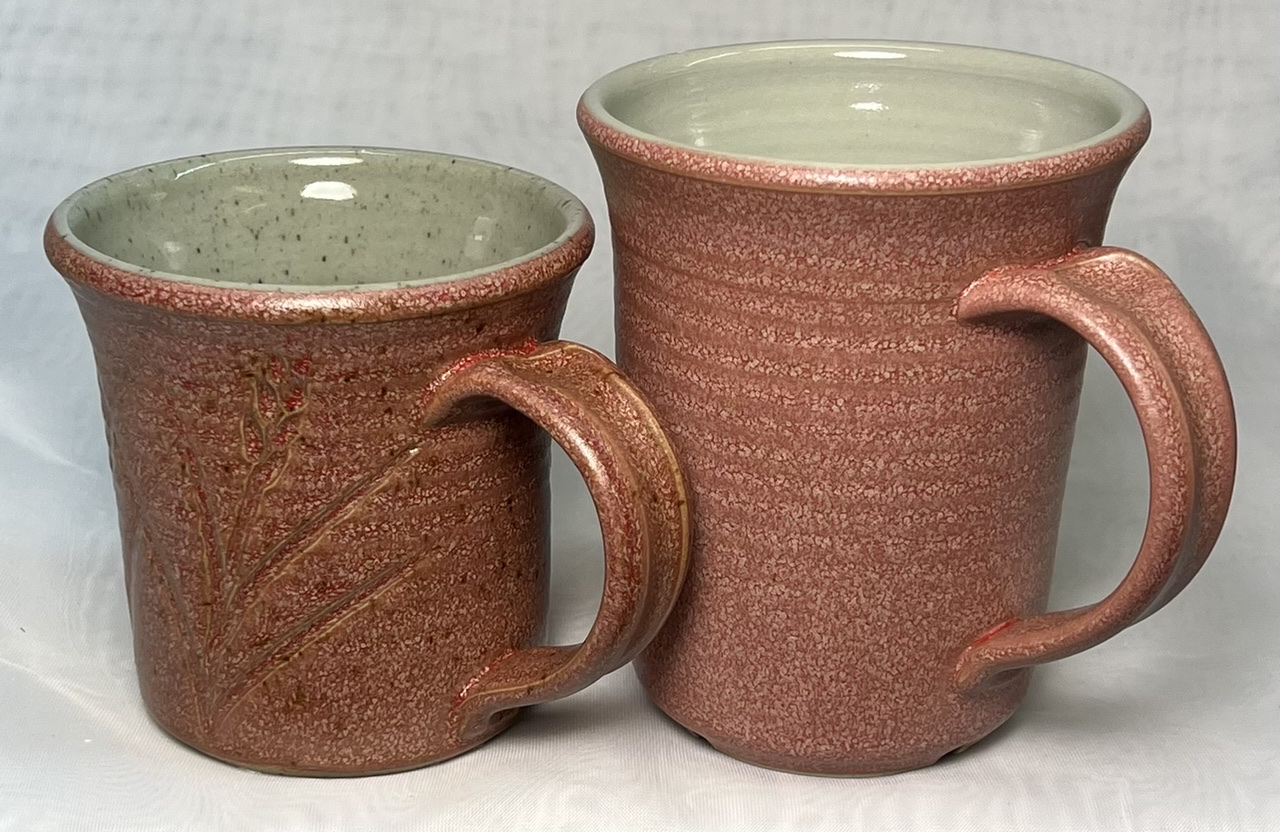

L4476 H570 mug cone 10ox firing
Glaze is G2571D1 and G3910A
Cone 10ox firing, drop and hold firing but not slow cool.
G3910A crazed over time.

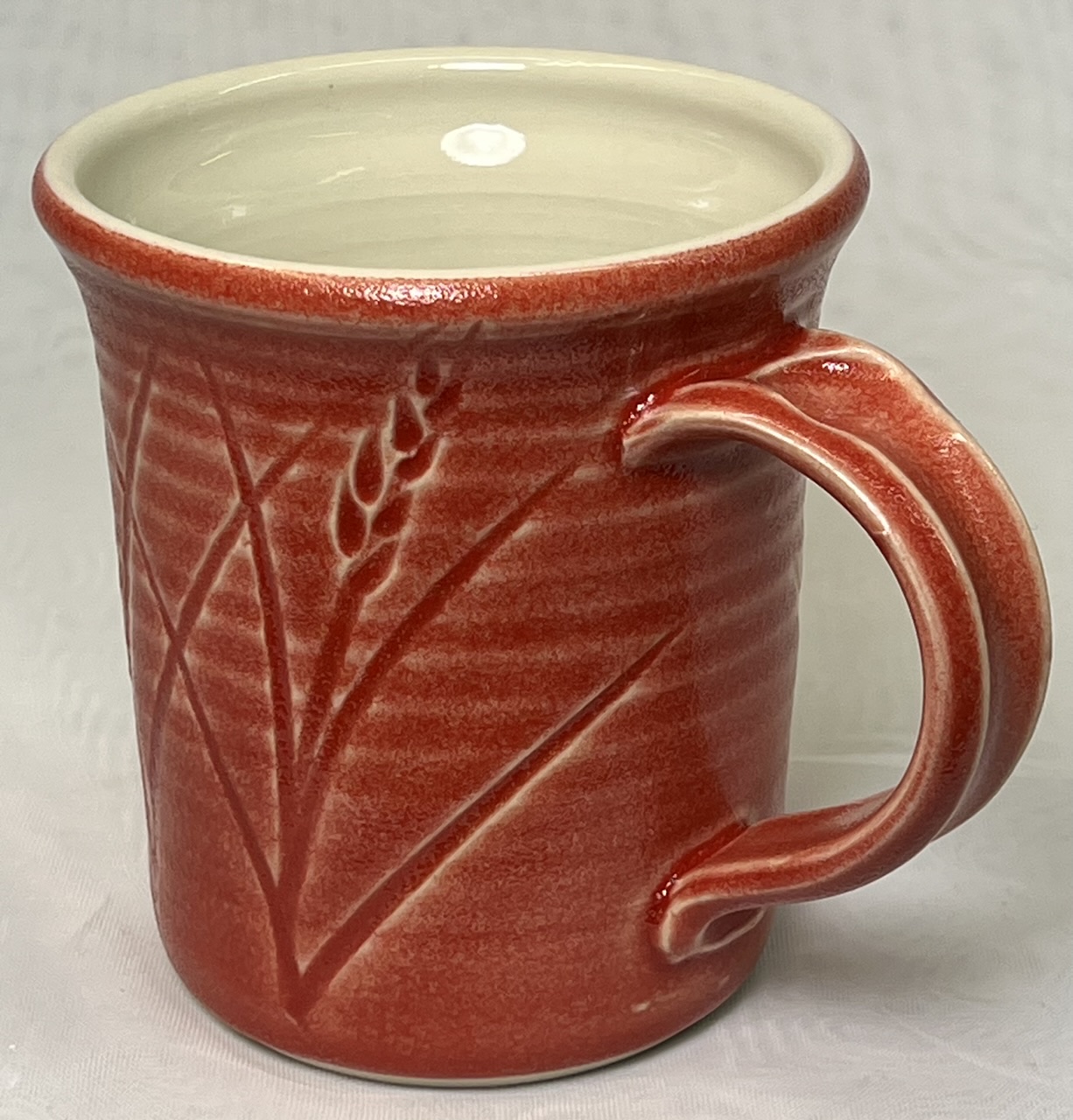

G2571D1 Cone 10 Marbled refire

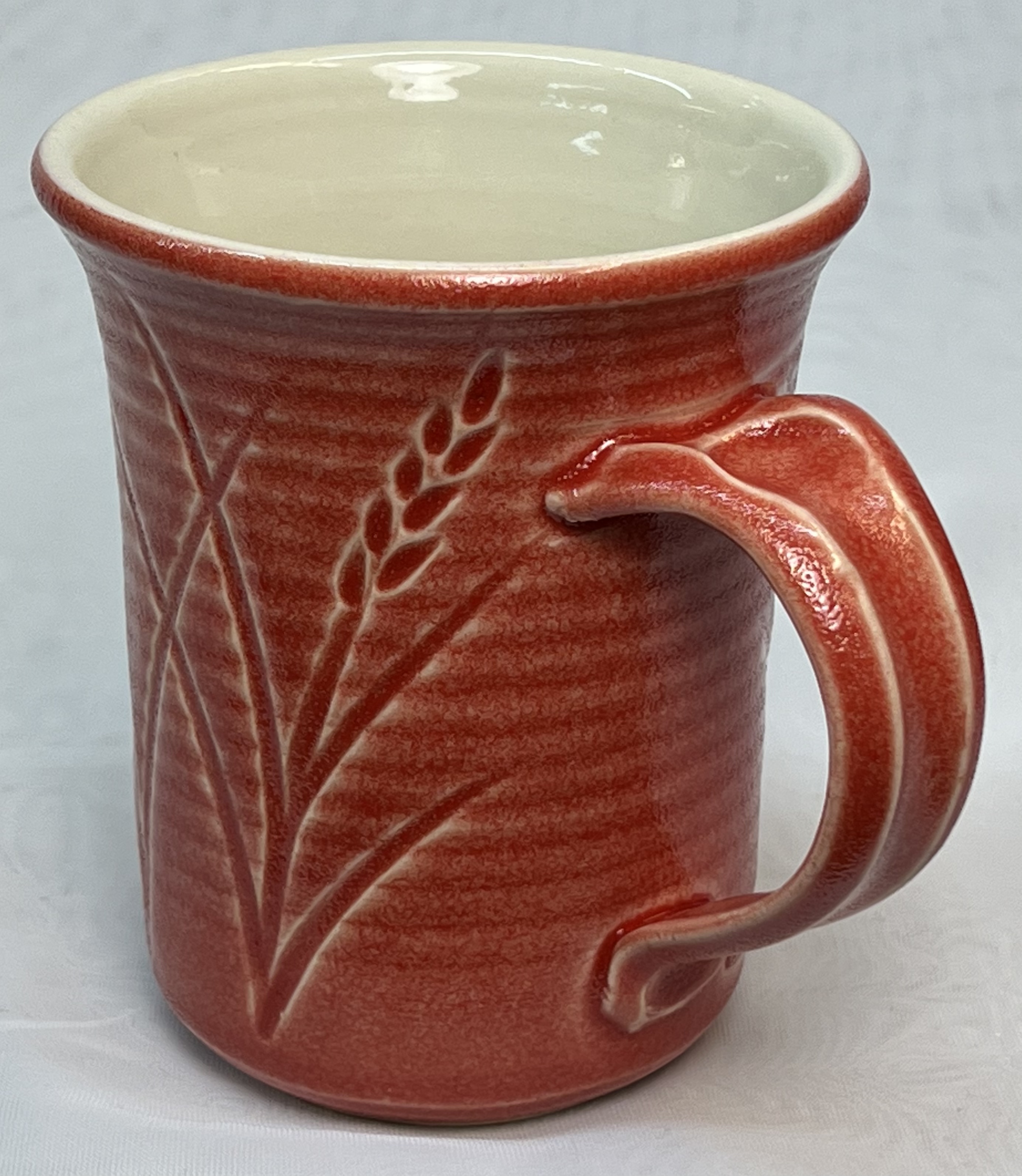

G2571D1 3.4% titanium
Typecodes
ST-Untitled typecode
Alternate Code Number:GS10-G
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Cone 10 Marbled Red Glaze" id="205487" key="HL7Whna3" date="2023-04-04" typecodes="ST" codenum="G2571D1" picturebasename=""> <recipelines> <recipeline material="Wollastonite" amount="21.000" tolerance=""/> <recipeline material="Custer Feldspar" amount="32.000" tolerance=""/> <recipeline material="EP Kaolin" amount="20.000" tolerance=""/> <recipeline material="Calcined Kaolin" amount="9.000" tolerance=""/> <recipeline material="Talc" amount="14.000" tolerance=""/> <recipeline material="Fusion Frit F-69" amount="4.000" tolerance=""/> <recipeline material="Titanium" amount="3.000" added="true"/> <recipeline material="Mason 6021 Red Stain" amount="6.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2006-03-16, Modified: 2023-04-04 14:06:14
Cone 6 Oxidation Marbled Red
|
Code # G3939A |
| Materials | Amt |
|---|---|
| G2934 | 90.000 |
| G2926B | 10.000 |
| Additions | |
|---|---|
| Titanium | 6.000 |
| Mason 6021 | 8.000 |
Total:114.00
Notes
*The titanium/stain marbling mechanism works well in our G2571A cone 10 high-MgO silky matte glaze. But does it work at cone 6 in the G2934 MgO matte? That is what this investigates.
We are using a 90:10 matte:glossy mix to start. From prior experience, it seemed evident that more titanium would be needed o induce the effect, so we started with 4.5% (and 8% stain).
However, from the photo below it is clear that more titanium was needed, thus the 6% in this recipe.
Pictures

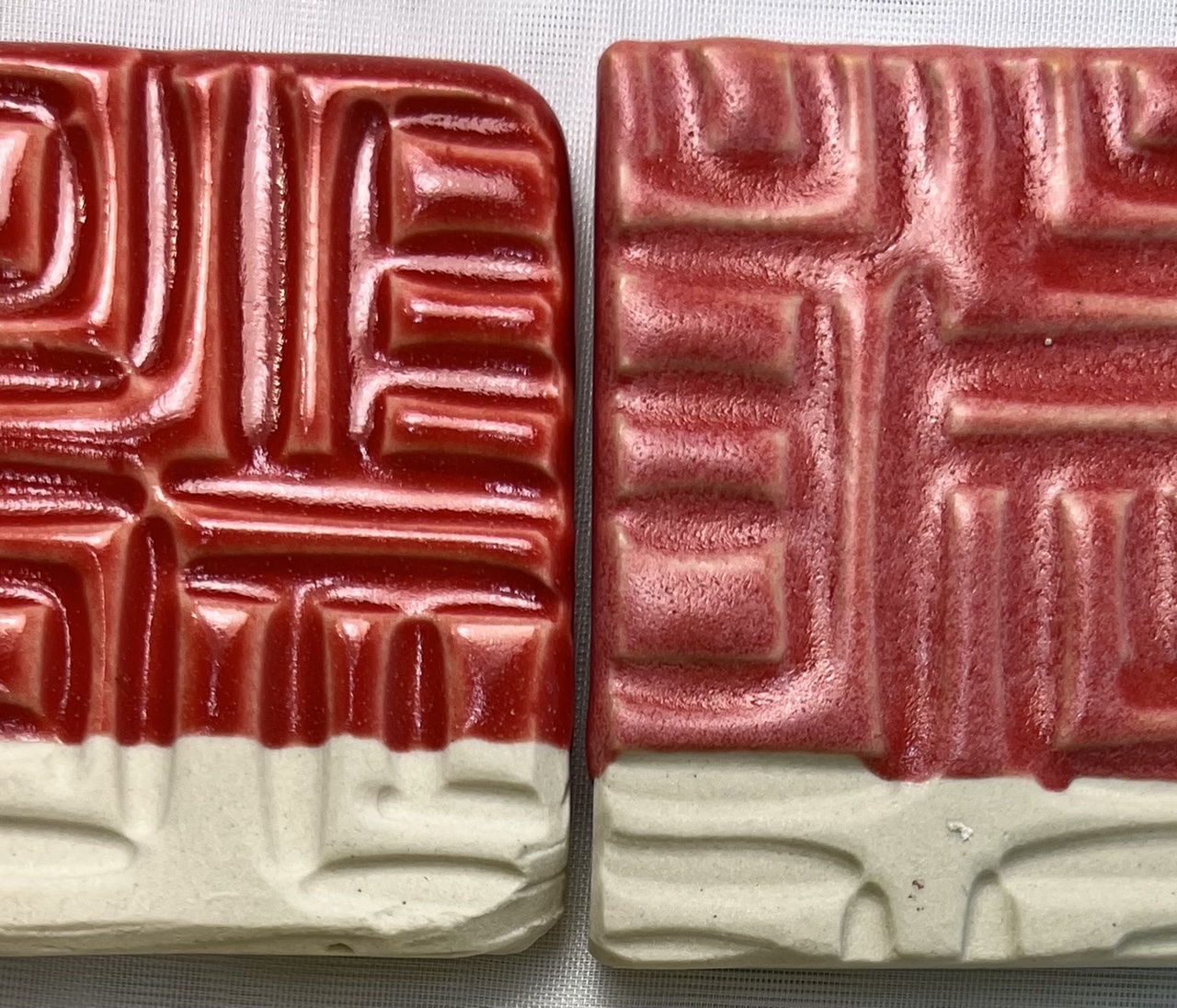

The difference between 4.5 and 6% titanium
G3939 vs G3939A

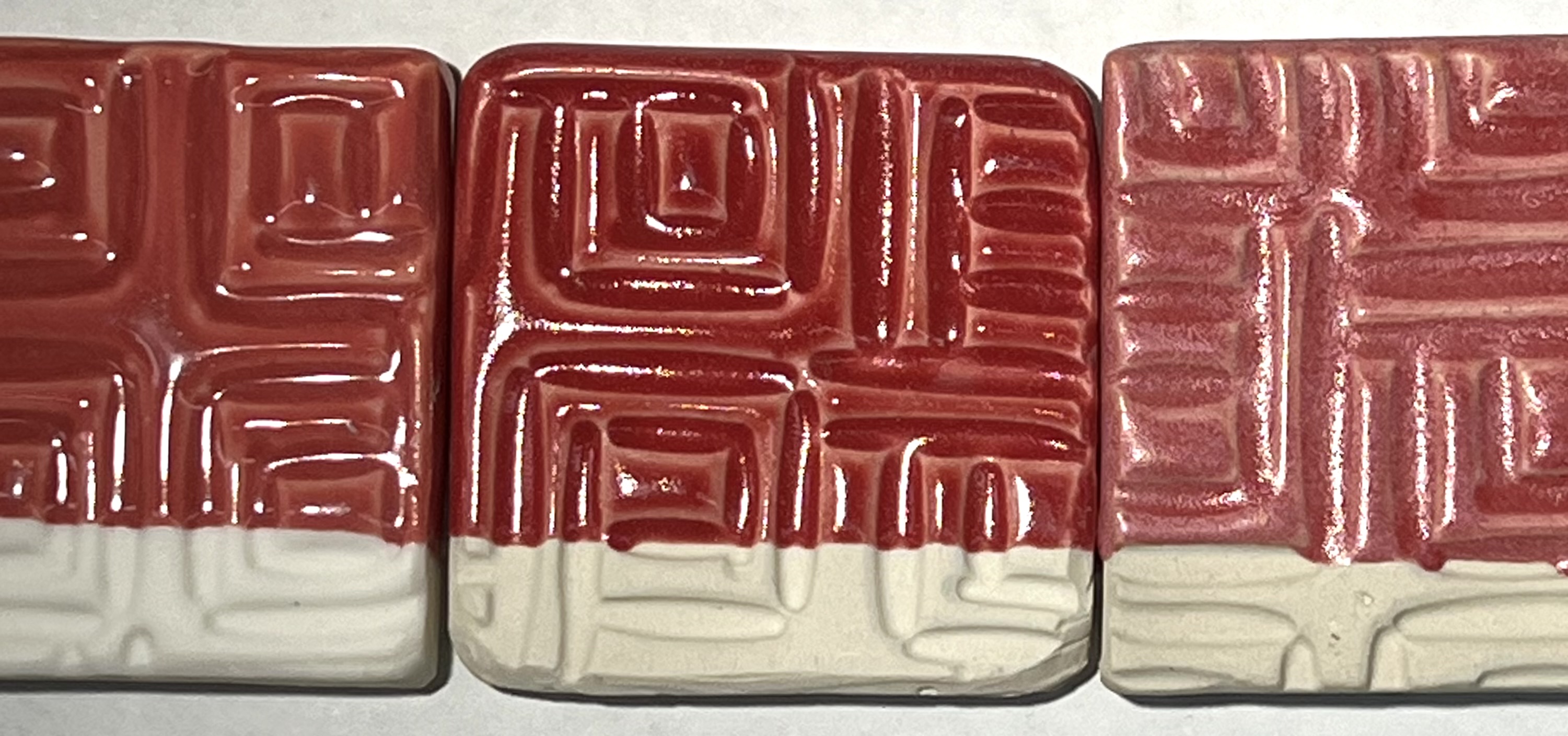

G3939A Marbled Red on dark clay
Untitled
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Cone 6 Oxidation Marbled Red" id="214641" key="ZBq891b2" date="2024-03-20" codenum="G3939A"> <recipelines> <recipeline material="G2934" amount="90.000" tolerance=""/> <recipeline material="G2926B" amount="10.000" tolerance=""/> <recipeline material="Titanium" amount="6.000" added="true"/> <recipeline material="Mason 6021" amount="8.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2022-01-09, Modified: 2024-03-20 20:37:19
